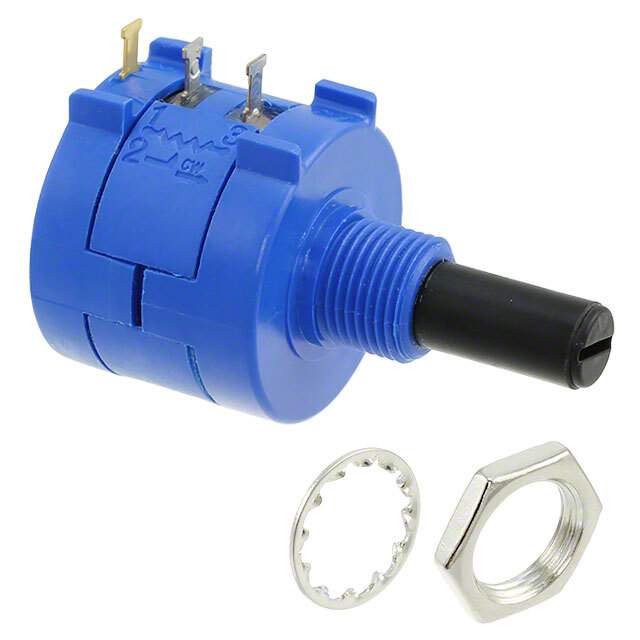

3590S-1-502L Real Image
Same model may have multiple batches, images only for reference.

3590S-1-502L

Part No 3590S-1-502L
Manufacturer Bourns Inc.
Catalog Rotary Potentiometers, Rheostats
Description Precision Potentiometer | POT 5K OHM 2W WIREWOUND LINEAR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Bulk
Resistance (Ohms) 5k
Tolerance ±5%
Power (W) 2W
Built in Switch None
Number of Turns 10
Taper Linear
Number of Gangs 1
Adjustment Type User Defined
Temperature Coefficient ±50ppm/°C
Rotation 3600°
Resistive Material Wirewound
Termination Style Solder Lug
Actuator Type Slotted
Actuator Length 0.812" (20.63mm)
Actuator Diameter 0.248" (6.30mm)
Bushing Thread 3/8-32
Mounting Style Panel Mount
Size - Body Round - 0.875" Dia x 0.732" H (22.22mm x 18.60mm)
Family Part Number 3590S
Manufacturer Pack Quantity 5
MSL Level 1 (Unlimited)
Win Source Part Number 1128295-3590S-1-502L
Manufacturer Homepage www.bourns.com
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian 3590S-1-502L CAD Model

Description

The 3590S series potentiometer from Bourns Inc. is a panel mount, wirewound potentiometer with a resistance of 5k Ohms, a tolerance of ±5%, and a temperature coefficient of ±50ppm/°C.

  • Product Name: 3590S series potentiometer
  • Manufacturer: Bourns Inc.
  • Mounting Type: Panel Mount
  • Type: Wirewound Potentiometer
  • Resistance: 5k Ohms
  • Tolerance: ±5%
  • Temperature Coefficient: ±50ppm/°C
  • Actuator Type: Slotted
  • Actuator Length: 0.812" (20.63mm)
  • Bushing Thread: 3/8-32
  • Package Dimensions: Round - 0.875" Dia x 0.732" H (22.22mm x 18.60mm)
  • Taper: Linear
  • Turns: 10
  • Power Rating: 2W
  • Operating Temperature: -55°C to 125°C
  • Family Part Number: 3590S
