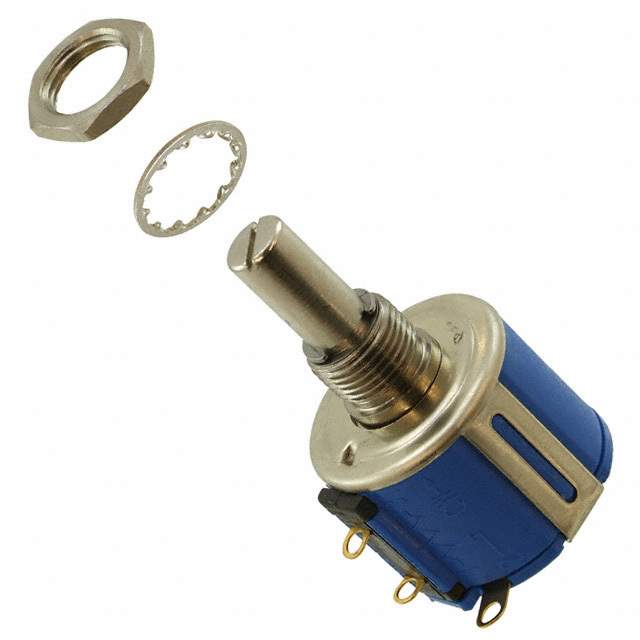

3543S-1-502L Real Image
Same model may have multiple batches, images only for reference.

3543S-1-502L

Part No 3543S-1-502L
Manufacturer Bourns Inc.
Catalog Rotary Potentiometers, Rheostats
Description Precision Potentiometer | POT 5K OHM 1W WIREWOUND LINEAR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Bulk
Resistance (Ohms) 5k
Tolerance ±5%
Power (W) 1W
Built in Switch None
Number of Turns 3
Taper Linear
Number of Gangs 1
Adjustment Type User Defined
Temperature Coefficient ±50ppm/°C
Rotation 1080°
Resistive Material Wirewound
Termination Style Solder Lug
Actuator Type Slotted
Actuator Length 0.812" (20.63mm)
Actuator Diameter 0.2497" (6.34mm)
Bushing Thread 3/8-32
Mounting Style Panel Mount
Size - Body Round - 0.875" Dia x 0.750" H (22.23mm x 19.05mm)
Family Part Number 3543S
Manufacturer Pack Quantity 5
MSL Level 1 (Unlimited)
Win Source Part Number 1128284-3543S-1-502L
Manufacturer Homepage www.bourns.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 3543S-1-502L CAD Model

Description

The Bourns Inc. 3543S-1-502L is a wirewound potentiometer with a linear taper.

  • Resistance: 5k Ohms
  • Tolerance: ±5%
  • Actuator Type: slotted
  • Actuator Length: 0.812 inches (20.63mm)
  • Actuator Diameter: 0.2497 inches (6.34mm)
  • Bushing Thread: 3/8-32
  • Rotation: 1080 degrees
  • Size: round - 0.875 inches diameter x 0.750 inches height (22.23mm x 19.05mm)
  • Mounting: panel mounting
  • Power Rating: 1W
  • Supply: limited supply product
  • Popularity: medium
