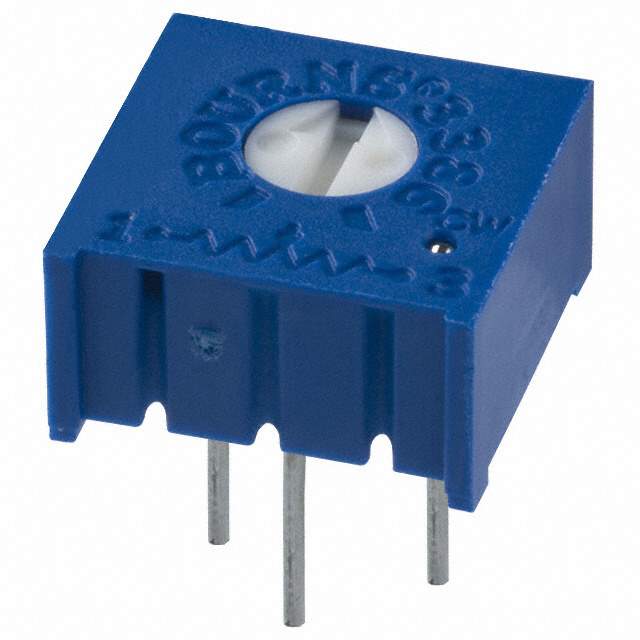

Same model may have multiple batches, images only for reference.

3386F-1-255LF

Name: 3386F-1-255LF
Brand: Bourns Inc.
SKU: 1034700
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	3386F-1-255LF
Manufacturer	Bourns Inc.
Catalog	Potentiometers, Variable Resistors
Description	TRIMMER 2.5M OHM 0.5W PC PIN TOP / 2.5 MOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment
Datasheet	3386F-1-255LF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Potentiometers, Variable Resistors>Trimmer Potentiometers
Mfr	Bourns Inc.
Series	Trimpot® 3386 - Sealed
Package	Tube
Resistance	2.5 MOhms
Power (Watts)	0.5W, 1/2W
Tolerance	±10%
Temperature Coefficient	±100ppm/°C
Number of Turns	1
Adjustment Type	Top Adjustment
Resistive Material	Cermet
Mounting Type	Through Hole
Termination Style	PC Pins
Dimension	Square - 0.375" x 0.375" Face (9.53mm x 9.53mm)
Base Product Number	3386F
MSL Level	Not Applicable
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8533.40.8050
Other Names	2266-3386F-1-255LF
Standard Package	100
Win Source Part Number	1034700-3386F-1-255LF
Ultra Librarian 3D Model	Ultra Librarian 3386F-1-255LF CAD Model

Description

The Trimpot® 3386 - Sealed is a variable resistor that is ideal for use in potentiometers.

Manufacturer: Bourns Inc.
Product: Trimpot® 3386 - Sealed
Termination Style: PC pins
Package: Tube
Tolerance: ±10%
Temperature Coefficient: ±100ppm/°C
Power: 0.5W
Number of Turns: 1
Adjustment Type: Top adjustment
Resistive Material: Cermet
Resistance: 2.5 MOhms
Mounting Type: Through hole
Dimension: Square - 0.375" x 0.375" Face (9.53mm x 9.53mm)
