Same model may have multiple batches, images only for reference.

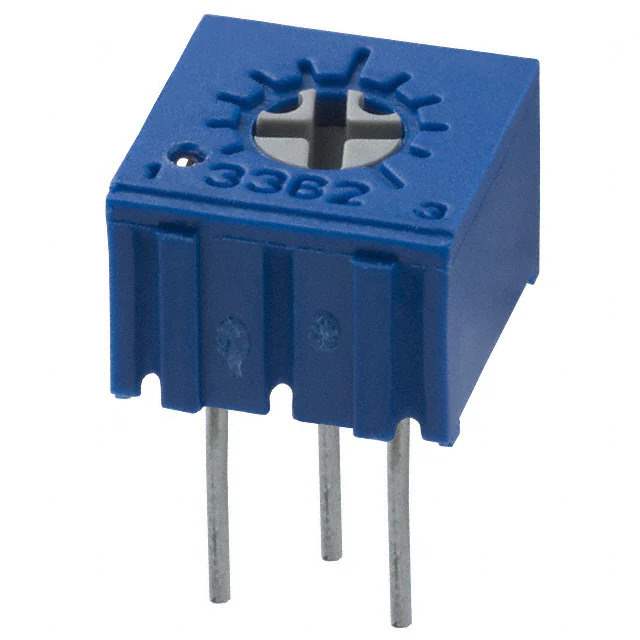

3362H-1-501LF Real Image
Same model may have multiple batches, images only for reference.

3362H-1-501LF

Part No 3362H-1-501LF
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 500 OHM 0.5W PC PIN TOP / 500 Ohms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment
Datasheet
3362H-1-501LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr Bourns Inc.
Series Trimpot® 3362 - Sealed
Package Tube
Product Status Active
Resistance 500 Ohms
Power (Watts) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Type Through Hole
Termination Style PC Pins
Size / Dimension Rectangular - 0.275" x 0.260" Face (6.99mm x 6.60mm)
Base Product Number 3362H
Standard Package 50 pcs
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8050
California Prop 65 Warning Information
Win Source Part Number 855719-3362H-1-501LF
Ultra Librarian 3D Model Ultra Librarian 3362H-1-501LF CAD Model

Description

The 855719-3362H-1-501LF is a top-adjustment potentiometer manufactured by Bourns Inc.

  • Series: Trimpot® 3362 - Sealed
  • Resistance: 500 Ohms
  • Tolerance: ±10%
  • Material: Cermet
  • Power Rating: 0.5W (1/2W)
  • Turns: 1
  • Termination Style: PC pins
  • Package: Tube
  • Shape: Rectangular
  • Face Size: 0.275" x 0.260" (6.99mm x 6.60mm)
  • Mounting: Through-hole
  • REACH: Affected
  • California Prop 65: Compliant
