Same model may have multiple batches, images only for reference.

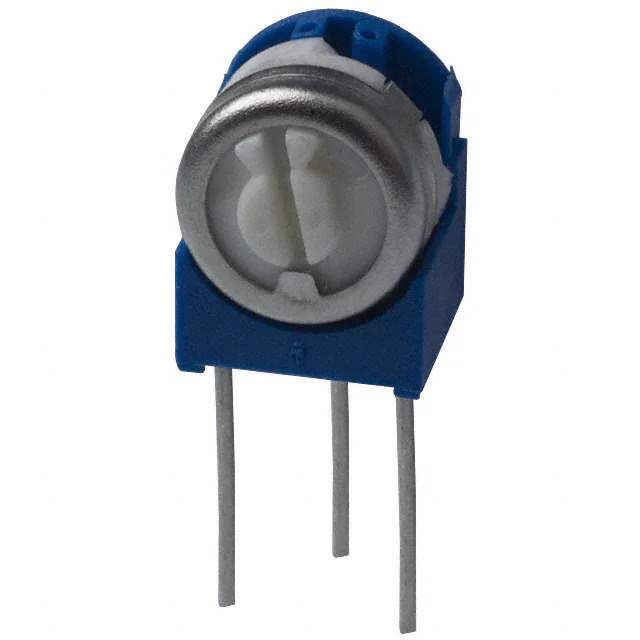

3329S-1-504LF Real Image
Same model may have multiple batches, images only for reference.

3329S-1-504LF

Part No 3329S-1-504LF
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 500KOHM 0.5W PC PIN SIDE / 500 kOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 1.0 Turn Side Adjustment
Datasheet
3329S-1-504LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr Bourns Inc.
Series Trimpot® 3329 - Sealed
Package Tube
Product Status Active
Resistance 500 kOhms
Power (Watts) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Type Through Hole
Termination Style PC Pins
Size / Dimension Rectangular - 0.260" x 0.330" Face (6.60mm x 8.38mm)
Base Product Number 3329S
Standard Package 100 pcs
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8050
California Prop 65 Warning Information
Win Source Part Number 855710-3329S-1-504LF
Ultra Librarian 3D Model Ultra Librarian 3329S-1-504LF CAD Model

Description

The 855710-3329S-1-504LF is a sealed trimmer potentiometer by Bourns Inc.

  • Termination: PC pins
  • Package: Tube
  • Size/Dimension: 0.260" x 0.330" face (6.60mm x 8.38mm)
  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
  • Power Rating: 0.5W (1/2W)
  • Resistance: 500 kOhms
  • Mounting Type: Through-hole
  • Status: Active
  • Series: Trimpot® 3329 - Sealed
