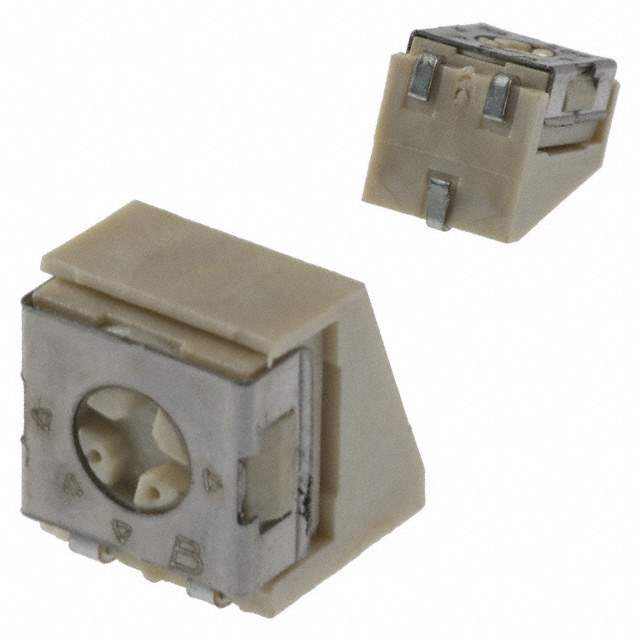

3314Z-1-203E

Part No 3314Z-1-203E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 20K OHM 0.25W SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Resistance (Ohms) 20k
Power (Watts) 0.25W, 1/4W
Tolerance ±20%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style J Lead
Dimension Square - 0.219" x 0.197" Face x 0.227" H (5.56mm x 5.01mm x 5.76mm)
Win Source Part Number 006103-3314Z-1-203E
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 3314Z-1-203E CAD Model

Description

Product Overview

The 3314Z-1-203E is engineered for superior durability and precision. Its advanced design serves a wide array of electronics, ensuring consistency in environmental adaptability and operational excellence.

Applications

  • Telemetry Systems
  • RF Applications
  • Power Supply Calibration
  • IOT Devices
  • Defense Electronics

Features and Benefits

  • Enhanced Stability: Maintains performance even in varying conditions.
  • Precision Adjustments: Allows for meticulous tuning across applications.
  • Compact Size: Maximizes space efficiency without compromising functionality.

Additional Details

This product embodies reliability and precision, making it a valued component for complex technological solutions. Its integration into high-demand systems underscores its robust capabilities and universal appeal.
