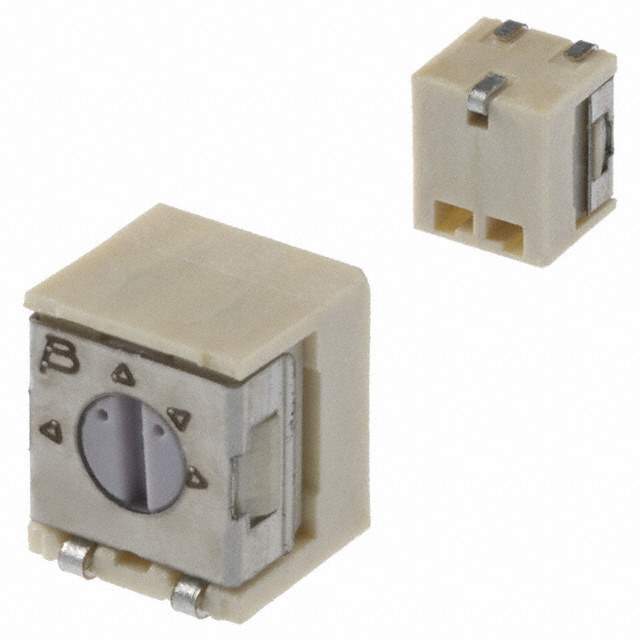

Same model may have multiple batches, images only for reference.

3314S-3-502E

Name: 3314S-3-502E
Brand: Bourns Inc.
SKU: 1017477
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	3314S-3-502E
Manufacturer	Bourns Inc.
Catalog	Potentiometers, Variable Resistors
Description	TRIMMER 5K OHM 0.25W J LEAD SIDE / 5 kOhms 0.25W, 1/4W J Lead Surface Mount Trimmer Potentiometer Cermet 1.0 Turn Side Adjustment
Datasheet	3314S-3-502E Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Potentiometers, Variable Resistors>Trimmer Potentiometers
Mfr	Bourns Inc.
Series	Trimpot® 3314 - Sealed
Package	Tape & Reel
Resistance	5 kOhms
Power (Watts)	0.25W, 1/4W
Tolerance	±20%
Temperature Coefficient	±100ppm/°C
Number of Turns	1
Adjustment Type	Side Adjustment
Resistive Material	Cermet
Mounting	SMD (SMT)
Termination Style	J Lead
Dimension	Rectangular - 0.197" x 0.177" Face (5.00mm x 4.50mm)
Base Product Number	3314S
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.40.8050
Other Names	3314S-3-502ECT,3314S-3-502ETR,3314S3502E,3314S-3-502EDKR
Standard Package	200
Win Source Part Number	1017477-3314S-3-502E
Ultra Librarian 3D Model	Ultra Librarian 3314S-3-502E CAD Model

Description

The Bourns Trimpot 3314S-3-502E is a cermet, side adjustment trimmer potentiometer that offers 5kOhms resistance with a tolerance of ±20%.

Power: 1/4W potentiometer has a power rating of 0.25W
Temperature Coefficient: ±100ppm/°C
Dimension: 3314S-3-502E has a rectangular dimension of 0.197 inches x 0.177 inches face (5.00mm x 4.50mm)
Turns: 1
Operating Temperature: -55°C to 125°C
REACH: REACH unaffected
