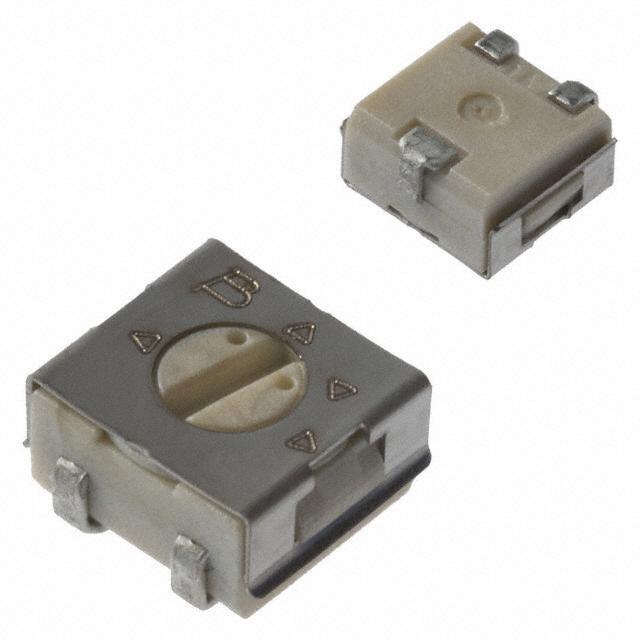

3314J-1-104E

Part No 3314J-1-104E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 100K OHM 0.25W SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Resistance (Ohms) 100k
Power (Watts) 0.25W, 1/4W
Tolerance ±20%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style J Lead
Dimension Square - 0.177" x 0.177" Face x 0.100" H (4.50mm x 4.50mm x 2.55mm)
Win Source Part Number 006089-3314J-1-104E
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 3314J-1-104E CAD Model

Description

Product Description

The 3314J-1-104E is a robust potentiometer designed for applications requiring high accuracy and resilience. Its construction ensures it can endure demanding conditions while maintaining performance.

Features and Benefits

  • Resilience: Engineered to operate effectively in harsh environments, offering high durability.
  • Precision: Provides accurate resistance adjustments for precise circuit calibration.
  • High Reliability: Consistent performance and minimal downtime due to its durable design.

Applications

  • Industrial Automation
  • Environmental Monitoring Systems
  • Automotive Electronics
