Same model may have multiple batches, images only for reference.

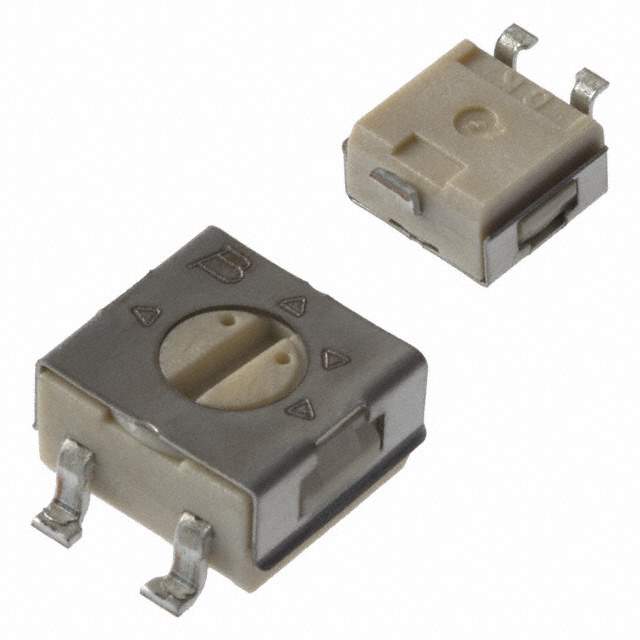

3314G-1-105E Real Image
Same model may have multiple batches, images only for reference.

3314G-1-105E

Part No 3314G-1-105E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 1M OHM 0.25W SMD
Datasheet
3314G-1-105E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Resistance (Ohms) 1M
Power (Watts) 0.25W, 1/4W
Tolerance ±20%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style Gull Wing
Dimension Square - 0.177" x 0.177" Face x 0.100" H (4.50mm x 4.50mm x 2.55mm)
Win Source Part Number 075718-3314G-1-105E
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 3314G-1-105E CAD Model

Description

Product Description

The 3314G-1-105E is a precision potentiometer that provides accurate and reliable performance for various electronic applications. Designed with a robust layout, this component ensures long-lasting functionality under different environmental conditions.

Features and Benefits

  • Precision: Manufactured for high accuracy in resistance tuning.
  • Durable Build: Quality materials ensure longevity and robust application.
  • Compact Design: Small form factor suitable for space-limited projects.

Applications and Projects

  • Calibration Equipment
  • Audio Control Devices
  • Remote Sensing Gadgets
