Same model may have multiple batches, images only for reference.

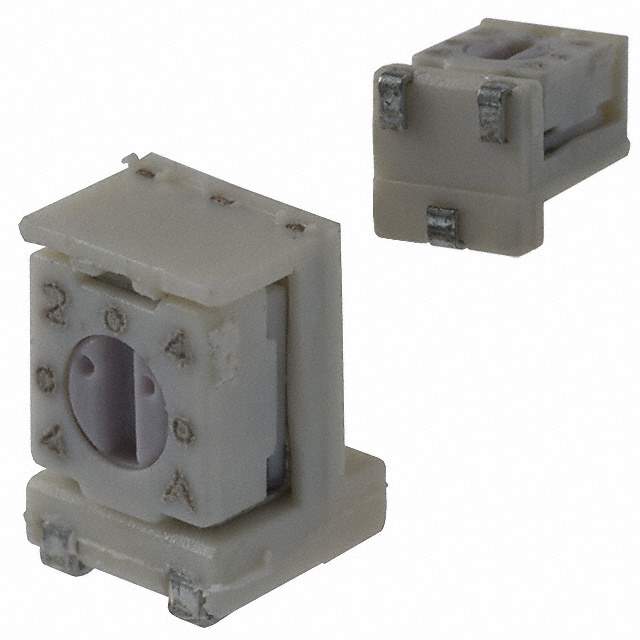

3313S-1-502E Real Image
Same model may have multiple batches, images only for reference.

3313S-1-502E

Part No 3313S-1-502E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 5K OHM 0.125W SMD
Datasheet
3313S-1-502E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Series Trimpot 3313 - Sealed
Packaging Reel package
Resistance (Ohms) 5k
Power (Watts) 0.125W, 1/8W
Tolerance ±20%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting SMD
Termination Style J Lead
Dimension Rectangular - 0.142" x 0.159" Face x 0.211" H (3.61mm x 4.05mm x 5.35mm)
Win Source Part Number 763266-3313S-1-502E
Popularity Medium
Supply and Demand Status Limited
Family Name 3313
Introduction Date September 25, 1997
ECCN EAR99
Country of Origin Taiwan
Halogen Free Not Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 3313S-1-502E CAD Model

Description

The Bourns Trimpot 3313 - Sealed series is a high-quality, one-turn potentiometer.

  • Resistance: 5k Ohms
  • Tolerance: ±20%
  • Mounting: Rectangular SMD
  • Adjustment: Side adjustment
  • Resistive Material: Cermet
  • Power Rating: 0.125W
  • Alternative Parts: SM-31A502, SM-31A5K, SM-3TA502
