Same model may have multiple batches, images only for reference.

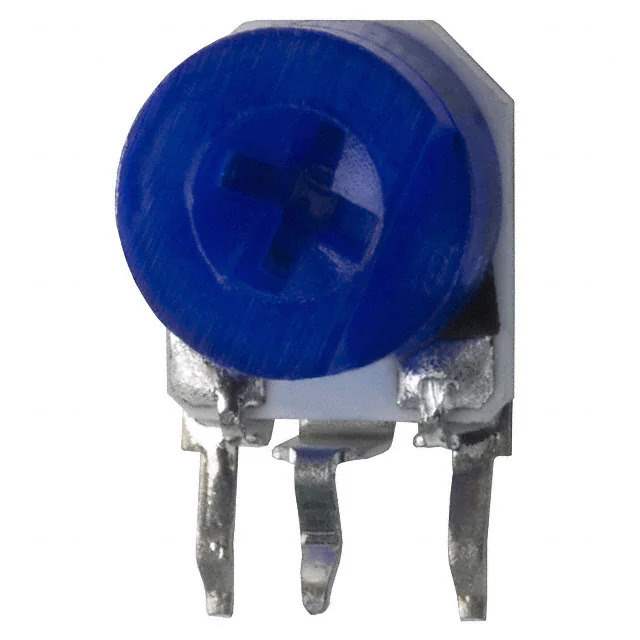

3306W-1-104 Real Image
Same model may have multiple batches, images only for reference.

3306W-1-104

Part No 3306W-1-104
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 100KOHM 0.2W PC PIN SIDE / 100 kOhms 0.2W, 1/5W PC Pins Through Hole Trimmer Potentiometer Cermet 1.0 Turn Side Adjustment
Datasheet
3306W-1-104 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr Bourns Inc.
Series Trimpot® 3306 - Open Frame
Package Bulk
Product Status Active
Resistance 100 kOhms
Power (Watts) 0.2W, 1/5W
Tolerance ±25%
Temperature Coefficient ±250ppm/°C
Number of Turns 1
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Type Through Hole
Termination Style PC Pins
Size / Dimension Rectangular - 0.268" x 0.319" Face (6.81mm x 8.10mm)
Base Product Number 3306W
Standard Package 200 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8050
California Prop 65 Warning Information
Win Source Part Number 855695-3306W-1-104
Ultra Librarian 3D Model Ultra Librarian 3306W-1-104 CAD Model

Description

The Trimpot 3306 is an open frame potentiometer designed for use in various electronic applications.

  • Size: 0.268" x 0.319"
  • Power Rating: 0.2W
  • Adjustment: Side
  • Resistive Material: Cermet
  • Resistance: 100 kOhms
  • Tolerance: ±25%
  • Mounting: Through-hole
  • Termination: PC pins
  • Series: Trimpot 3306
  • Manufacturer: Bourns Inc.
  • Package: 200 pcs
  • Status: Active
  • California Prop 65: Compliant, with warning
