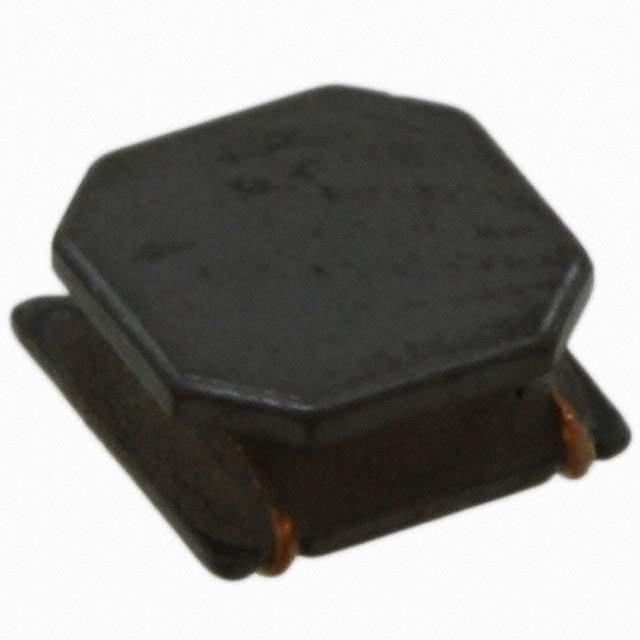

IFSC1515AHER4R7M01 Real Image
Same model may have multiple batches, images only for reference.

IFSC1515AHER4R7M01

Part No IFSC1515AHER4R7M01
Manufacturer Vishay
Catalog Fixed Inductors
Description FIXED IND 4.7UH 2.2A 90 MOHM SMD / 4.7 µH Shielded Inductor 2.2 A 90mOhm Max Nonstandard
Datasheet
IFSC1515AHER4R7M01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Vishay Dale
Series IFSC-1515AH-01
Package Tape & Reel
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 2.2 A
Current - Saturation (Isat) 2A
Shielding Shielded
DC Resistance (DCR) 90mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) 0.075" (1.90mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names 541-1405-6,541-1405-2,541-1405-1
Standard Package 2,000
Win Source Part Number 1229238-IFSC1515AHER4R7M01
Ultra Librarian 3D Model Ultra Librarian IFSC1515AHER4R7M01 CAD Model

Description

The Vishay Dale IFSC-1515AH-01 is a shielded fixed inductor with an inductance of 4.7 µH and a tolerance of ±20%.

  • Inductance: 4.7 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 90mOhm Max
  • Current Rating: 2.2 A
  • Mounting: SMD (SMT)
  • Package Size: 0.157" L x 0.157" W (4.00mm x 4.00mm)
  • Temperature Range: -55°C to 125°C
  • Packaging: Tape and Reel
