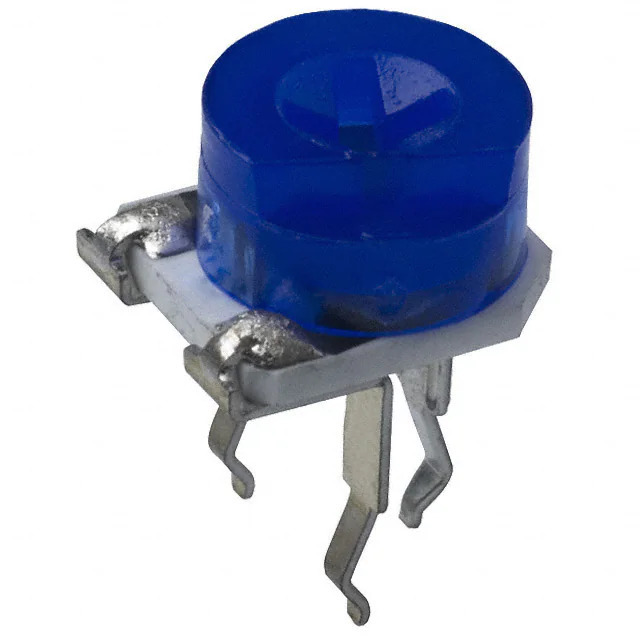

3306P-1-102 Bourns Inc.
Same model may have multiple batches, images only for reference.

3306P-1-102

Part No 3306P-1-102
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 1K OHM 0.2W PC PIN TOP / 1 kOhms 0.2W, 1/5W PC Pins Through Hole Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment
Datasheet
3306P-1-102 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr Bourns Inc.
Series Trimpot® 3306 - Open Frame
Package Bulk
Product Status Active
Resistance 1 kOhms
Power (Watts) 0.2W, 1/5W
Tolerance ±25%
Temperature Coefficient ±250ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Type Through Hole
Termination Style PC Pins
Size / Dimension Rectangular - 0.319" x 0.268" Face (8.10mm x 6.80mm)
Base Product Number 3306P
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8050
Win Source Part Number 1354442-3306P-1-102
Ultra Librarian 3D Model Ultra Librarian 3306P-1-102 CAD Model

Description

The 3306P is a through-hole trimmer potentiometer from Bourns Inc.

  • Resistance: 1 kOhm
  • Tolerance: ±25%
  • Power Rating: 0.2W, 1/5W
  • Series: Trimpot® 3306 - Open Frame
  • Packaging: Bulk
  • Mounting Type: Through Hole
  • Pins: PC Pins
  • Size / Dimension: 0.319" x 0.268" face (8.10mm x 6.80mm)
  • Number of Turns: 1
  • Adjustment Type: Top Adjustment
  • Resistive Material: Cermet
