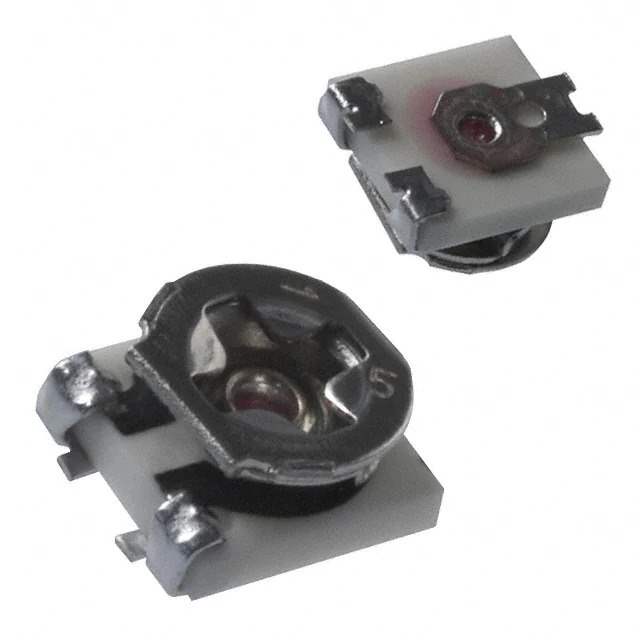

Same model may have multiple batches, images only for reference.

3303X-3-502E

Name: 3303X-3-502E
Brand: Bourns Inc.
SKU: 855692
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	3303X-3-502E
Manufacturer	Bourns Inc.
Catalog	Trimmer Potentiometers
Description	TRIMMER 5K OHM 0.15W J LEAD TOP / 5 kOhms 0.15W J Lead Surface Mount Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment
Datasheet	3303X-3-502E Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr	Bourns Inc.
Series	Trimpot® 3303 - Open Frame
Package	Tape & Reel (TR)Cut Tape (CT)
Product Status	Obsolete
Resistance	5 kOhms
Power (Watts)	0.15W
Tolerance	±25%
Temperature Coefficient	±250ppm/°C
Number of Turns	1
Adjustment Type	Top Adjustment
Resistive Material	Cermet
Mounting Type	Surface Mount
Termination Style	J Lead
Size / Dimension	Rectangular - 0.148" x 0.118" Face (3.75mm x 3.00mm)
Base Product Number	3303X
Standard Package	2,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.40.8050
Win Source Part Number	855692-3303X-3-502E
Ultra Librarian 3D Model	Ultra Librarian 3303X-3-502E CAD Model

Alternative Products

Description

The 855692-3303X-3-502E is an open frame trimmer potentiometer from Bourns Inc.

Series: Trimpot® 3303 - Open Frame
Package: Tape & Reel (TR) Cut Tape (CT)
Standard Package: 2,000 pcs
Resistance: 5 kOhms
Tolerance: ±25%
Power Rating: 0.15W
Temperature Coefficient: ±250ppm/°C
Number of Turns: 1
Adjustment: Top
Termination Style: J lead
Mounting: Surface Mount
ECCN: EAR99
REACH: Not affected
Applications: Industrial controls, automotive electronics, and medical devices
Product Status: Obsolete
