Same model may have multiple batches, images only for reference.

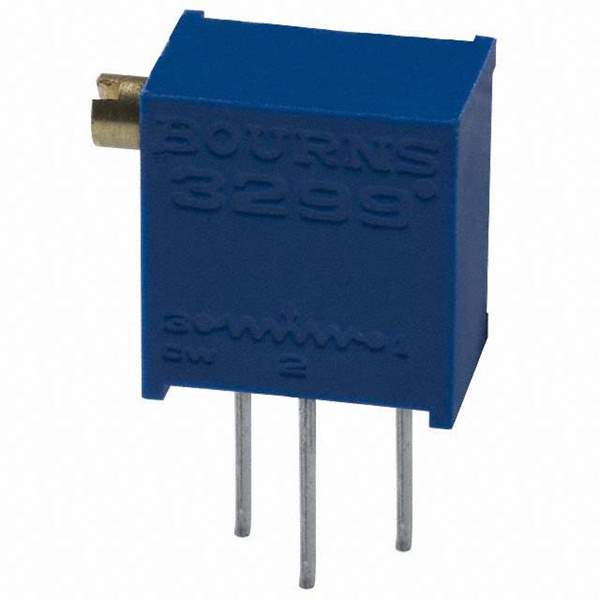

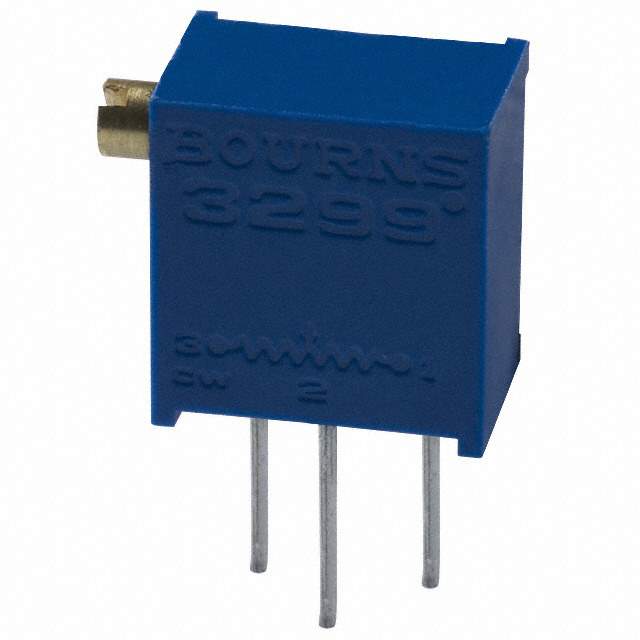

3299Z-1-503LF Real Image
Same model may have multiple batches, images only for reference.

3299Z-1-503LF

Part No 3299Z-1-503LF
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 50K OHM 0.5W PC PIN
Datasheet
3299Z-1-503LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Series Trimpot 3299 - Sealed
Packaging Tube
Resistance (Ohms) 50k
Power (Watts) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 25
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Style Through Hole
Termination Style PC Pins
Dimension Rectangular - 0.395" x 0.240" Face x 0.395" H (10.03mm x 6.10mm x 10.03mm)
Win Source Part Number 763253-3299Z-1-503LF
Popularity Medium
Supply and Demand Status Limited
Family Name 3299
Introduction Date March 01, 2005
ECCN EAR99
Country of Origin Costa Rica
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 3299Z-1-503LF CAD Model

Description

Bourns Inc. 763253-3299Z-1-503LF is a side adjustment cermet trimmer potentiometer.

  • Resistance: 50k Ohms
  • Power Rating: 0.5W
  • Turns: 25
  • Tolerance: ±10%
  • Mounting: Through hole
  • Shape: Rectangular (face dimension: 0.395 inches x 0.240 inches, height: 0.395 inches)
  • Series: Trimpot 3299 - Sealed
  • Packaging: Tube
  • REACH: Unaffected
  • ECCN: EAR99
