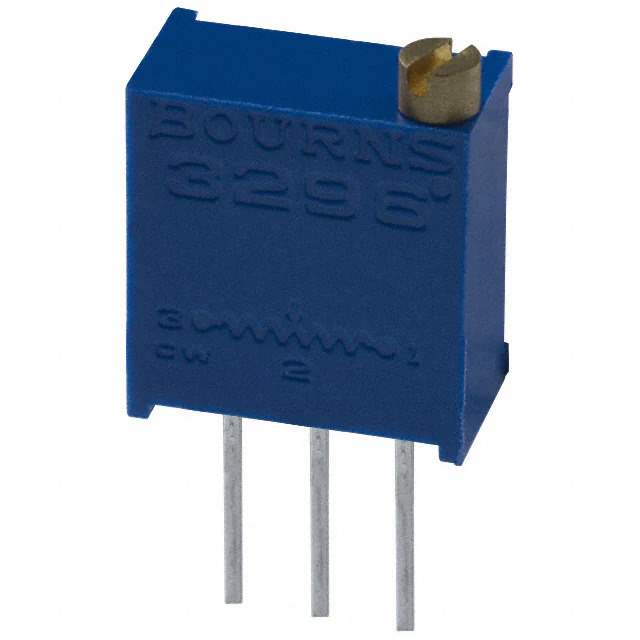

Same model may have multiple batches, images only for reference.

3296W-1-501

Name: 3296W-1-501
Brand: Bourns Inc.
SKU: 855669
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	3296W-1-501
Manufacturer	Bourns Inc.
Catalog	Trimmer Potentiometers
Description	TRIMMER 500 OHM 0.5W PC PIN TOP
Datasheet	3296W-1-501 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr	Bourns Inc.
Series	Trimpot® 3296 - Sealed
Package	Tube
Product Status	Active
Resistance	500 Ohms
Power (Watts)	0.5W, 1/2W
Tolerance	±10%
Temperature Coefficient	±100ppm/°C
Number of Turns	25
Adjustment Type	Top Adjustment
Resistive Material	Cermet
Mounting Type	Through Hole
Termination Style	PC Pins
Size / Dimension	Rectangular - 0.375" x 0.190" Face (9.53mm x 4.83mm)
Base Product Number	3296W
Standard Package	100 pcs
MSL Level	Not Applicable
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8533.40.8050
California Prop 65	Warning Information
Win Source Part Number	855669-3296W-1-501
Ultra Librarian 3D Model	Ultra Librarian 3296W-1-501 CAD Model

Alternative Products

Description

The Trimpot® 3296 - Sealed is a high-quality potentiometer designed for various applications in the electronics industry.

Resistance: 500 Ohms
Power (Watts): 0.5W
Shape: Rectangular
Dimensions: 0.375" x 0.190"
Adjustment Mechanism: Top Adjustment
Termination: PC pins
Series: Trimpot®
Manufacturer: Bourns Inc.
Resistive Material: Cermet
Tolerance: ±10%
Temperature Coefficient: ±100ppm/°C
Turns: 25
Package: Tube
Pieces per package: 100
Product Status: Active
California Prop 65: Compliant
Applications: Audio equipment, instrumentation, and industrial controls
