Same model may have multiple batches, images only for reference.

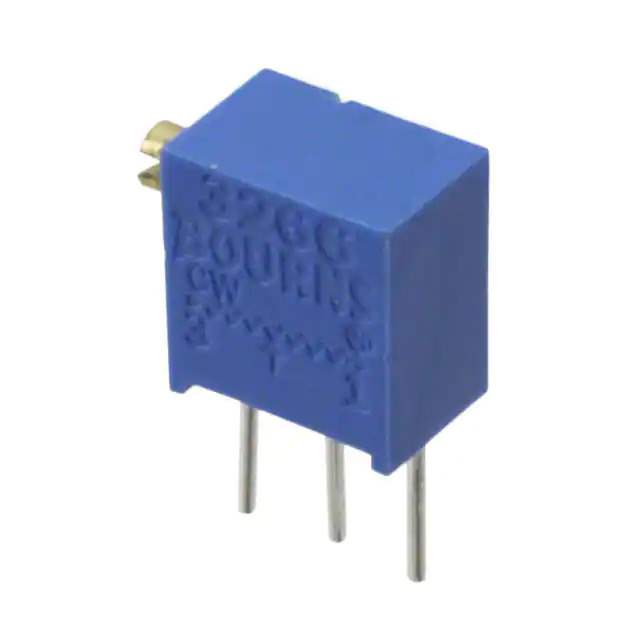

3266Z-1-104LF Real Image
Same model may have multiple batches, images only for reference.

3266Z-1-104LF

Part No 3266Z-1-104LF
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 100K OHM 0.25W PC PIN / 100 kOhms 0.25W, 1/4W PC Pins Through Hole Trimmer Potentiometer Cermet 12.0 Turn Side Adjustment
Datasheet
3266Z-1-104LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr Bourns Inc.
Series Trimpot® 3266 - Sealed
Package Tube
Product Status Active
Resistance 100 kOhms
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 12
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Type Through Hole
Termination Style PC Pins
Size / Dimension Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm)
Base Product Number 3266Z
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.31.0000
California Prop 65 Warning Information
Win Source Part Number 906557-3266Z-1-104LF
Ultra Librarian 3D Model Ultra Librarian 3266Z-1-104LF CAD Model

Description

The 906557-3266Z-1-104LF is a trimmer potentiometer manufactured by Bourns Inc.

  • Category: Potentiometers and Variable Resistors, specifically Trimmer Potentiometers
  • Resistance: 100 kOhms
  • Tolerance: ±10%
  • Adjustment Type: side adjustment
  • Rectangular Face: 0.250" x 0.170"
  • Power Rating: 0.25W
  • Temperature Coefficient: ±100ppm/°C
  • Status: active product
