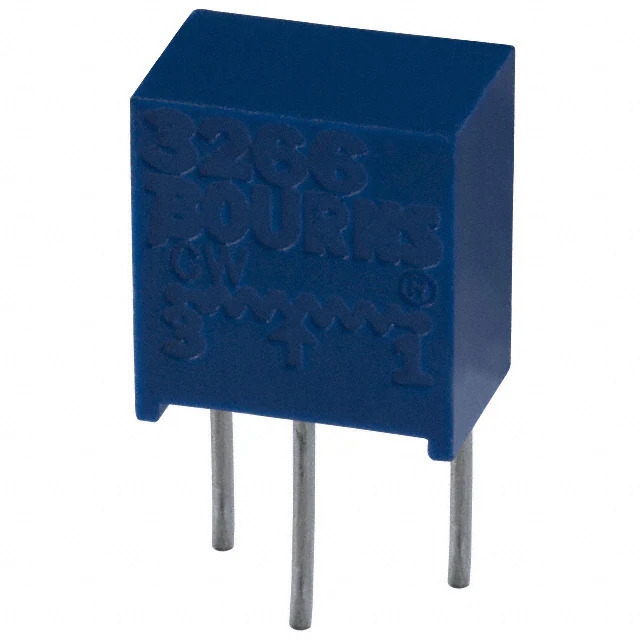

3266X-1-501 Bourns Inc.
Same model may have multiple batches, images only for reference.

3266X-1-501

Part No 3266X-1-501
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 500OHM 0.25W PC PIN SIDE
Datasheet
3266X-1-501 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr Bourns Inc.
Series Trimpot® 3266 - Sealed
Package Tube
Product Status Active
Resistance 500 Ohms
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 12
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Type Through Hole
Termination Style PC Pins
Size / Dimension Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm)
Base Product Number 3266X
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8050
Win Source Part Number 1375076-3266X-1-501
Ultra Librarian 3D Model Ultra Librarian 3266X-1-501 CAD Model

Description

The Bourns Inc. Trimpot® 3266 - Sealed is a potentiometer used in various electronic circuits.

  • Resistance: 500 Ohms
  • Power Rating: 0.25W
  • Mounting Type: Through-Hole
  • Termination Style: PC Pins
  • Size: 0.250" x 0.170"
  • Tolerance: ±10%
  • Turns: 12
  • Resistive Material: Cermet
  • Temperature Coefficient: ±100ppm/°C
  • REACH: Affected
