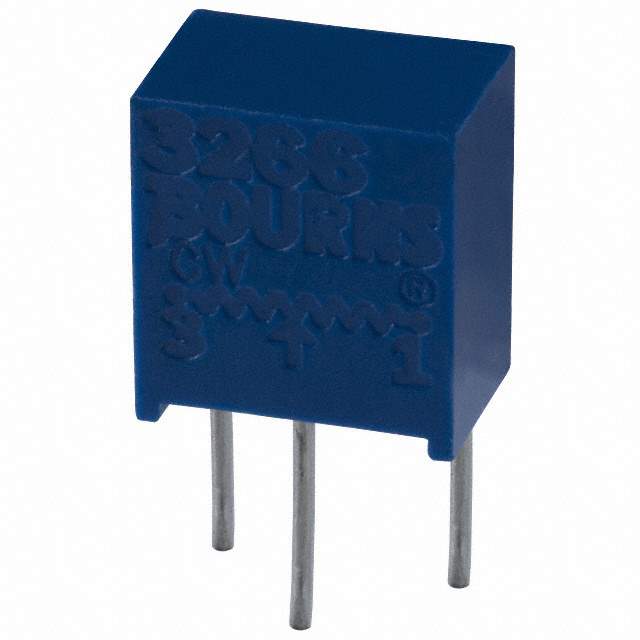

Same model may have multiple batches, images only for reference.

3266X-1-103

Name: 3266X-1-103
Brand: Bourns Inc.
SKU: 545452
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	3266X-1-103
Manufacturer	Bourns Inc.
Catalog	Trimmer Potentiometers
Description	1/4 Square Trimming Potentiometer \| TRIMMER 10KOHM 0.25W PC PIN SIDE
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Potentiometers, Variable Resistors
Manufacturer	Bourns Inc.
Packaging	Tube
Resistance	10 kOhms
Power (W)	0.25W, 1/4W
Tolerance	±10%
Temperature Coefficient	±100ppm/°C
Number of Turns	12
Adjustment Type	Side Adjustment
Resistive Material	Cermet
Mounting Style	Through Hole
Termination Style	PC Pins
Parts Dimension	Rectangular - 0.250" x 0.170" Face x 0.270" H (6.35mm x 4.31mm x 6.85mm)
Family Part Number	3266X
Manufacturer Pack Quantity	100
MSL Level	1 (Unlimited)
Win Source Part Number	1128140-3266X-1-103
Manufacturer Homepage	www.bourns.com
Popularity	Medium
Supply and Demand Status	Limited
Application Field	Used in Industrial, Consumer Electronics, Portable Devices, Power Management
Ultra Librarian 3D Model	Ultra Librarian 3266X-1-103 CAD Model

Description

The 3266X-1-103 is a potentiometer variable resistor from Bourns Inc.

Turns: 12
Resistance: 10 kohms
Tolerance: ±10%
Temperature Coefficient: ±100ppm/°C
Mounting: through hole
Power Rating: 0.25W, 1/4W
Ideal for: use in industrial, consumer electronics, portable devices, and power management applications
Shape: rectangular
Dimensions: 0.250 inches x 0.170 inches face x 0.270 inches height (6.35mm x 4.31mm x 6.85mm)
ROHS3: compliant
Pack Quantity: 100
