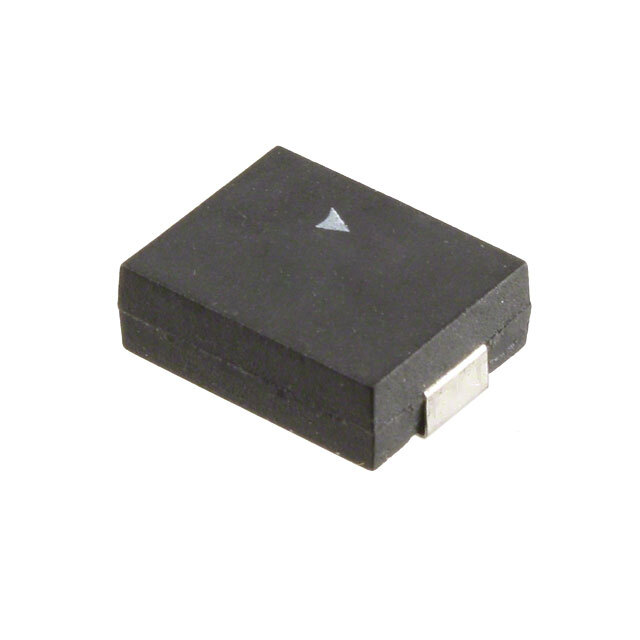

B59315P1120A062

Name: B59315P1120A062
Brand: EPCOS (TDK)
SKU: 769530
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	B59315P1120A062
Manufacturer	EPCOS (TDK)
Catalog	PTC Resettable Fuses
Description	PTC RESETTABLE 150MA 63VDC 4032 / Thermistor PTC 16 Ohm 25% 2-Pin 4032 Surface Mount Solder Pad T/R Automotive
Datasheet	B59315P1120A062 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	EPCOS (TDK)
Packaging	Reel package
Type	Ceramic
Voltage - Max	80V
Current - Max	1.6A
Current - Hold (Ih) (Maximum)	150mA
Current - Trip (It)	310mA
Resistance - 25°C (Typ)	16 Ohm
Operating Temperature Range	-40°C ~ 60°C
Ratings	AEC-Q200
Mounting	SMD
Package	4032 (1080 Metric)
Dimension	0.394" L x 0.315" W (10.00mm x 8.00mm)
Thickness (Maximum)	0.150" (3.80mm)
Win Source Part Number	769530-B59315P1120A062
Popularity	Medium
Supply and Demand Status	Limited
Introduction Date	March 14, 2006
ECCN	EAR99
Country of Origin	China
Estimated EOL Date	2023
Ultra Librarian 3D Model	Ultra Librarian B59315P1120A062 CAD Model

Description

The EPCOS (TDK) 769530-B59315P1120A062 is a ceramic type circuit protection component that operates in a temperature range of -40°C to 60°C.

Package: 4032 (1080 Metric)
AEC-Q200 Rating: Yes
Mounting Type: SMD
Maximum Voltage: 80V
Maximum Current: 1.6A
Trip Current: 310mA
Hold Current: 150mA
Resistance @ 25°C: 16 Ohm (Typical)
Thickness: 0.150" (3.80mm)
Dimension: 0.394" L x 0.315" W (10.00mm x 8.00mm)
Introduction Date: March 14, 2006
Country of Origin: China
Estimated EOL Date: 2023
