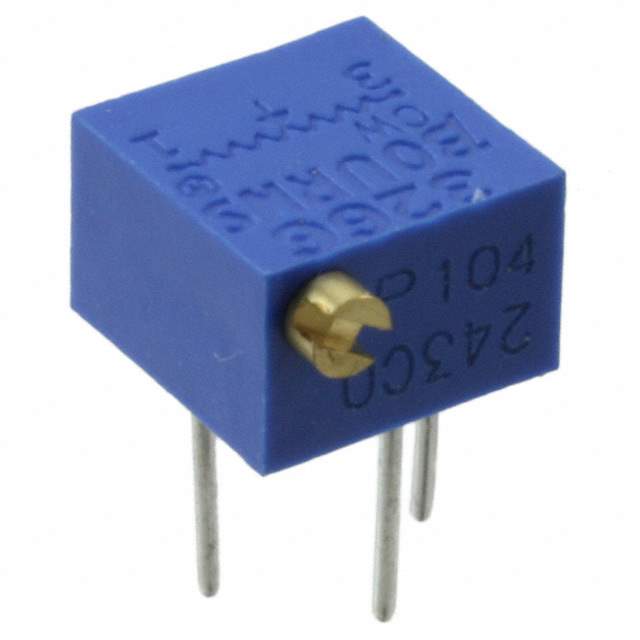

The Bourns 3266P-1-503LF is a 1/4" square multi-turn trimming potentiometer designed for precision adjustments in electronic circuits. This potentiometer is part of the Bourns 3266 series, known for its compact size, high stability, and reliable performance. It is commonly used for calibration and fine-tuning applications.

Applications:

• Calibration Circuits: Used for calibrating sensors, amplifiers, and other electronic components.
• Feedback Control: Employed in feedback control systems for adjusting gain and offset.
• Voltage Adjustment: Integrated into voltage regulators and power supplies for fine-tuning voltage levels.
• Current Adjustment: Utilized in current sources and current limiting circuits.
• Audio Equipment: Found in audio amplifiers and mixers for adjusting volume and tone.

Features:

• Multi-Turn Adjustment: Provides precise and fine-tuning capabilities.
• Sealed Construction: Protects against dust and moisture.
• Compact Size: Allows for high-density board mounting.
• High Stability: Ensures stable resistance values over time and temperature.
• RoHS Compliant: Meets the requirements of the Restriction of Hazardous Substances directive.

Benefits:

• Precise Adjustment: Enables accurate calibration and fine-tuning.
• Long Lifespan: Designed for long-term reliability and durability.
• Stable Performance: Ensures consistent performance over a wide range of conditions.
• Easy Installation: Simple and quick mounting process.
• Environmentally Friendly: Complies with environmental regulations.

The 3266P-1-503LF from Bourns is a versatile and reliable trimming potentiometer suited for a wide range of applications requiring precise adjustments. Its multi-turn design allows for fine-tuning, and the sealed construction protects against environmental contaminants. The compact size makes it ideal for high-density circuit boards. This potentiometer is commonly used in calibration circuits, voltage regulators, and audio equipment where accurate and stable resistance values are critical. The RoHS compliance ensures that it meets environmental standards. Its robust construction and high stability make it a trusted choice for electronic designers and manufacturers.
