Same model may have multiple batches, images only for reference.

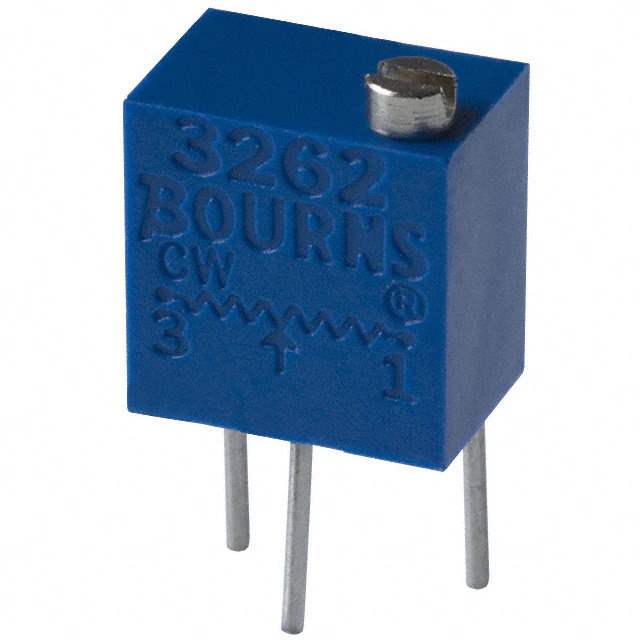

3262W-1-503LF Real Image
Same model may have multiple batches, images only for reference.

3262W-1-503LF

Part No 3262W-1-503LF
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 50K OHM 0.25W PC PIN TOP / 50 kOhms 0.25W, 1/4W PC Pins Through Hole Trimmer Potentiometer Cermet 12.0 Turn Top Adjustment
Datasheet
3262W-1-503LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr Bourns Inc.
Series Trimpot® 3262 - Sealed
Package Tube
Product Status Active
Resistance 50 kOhms
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 12
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Type Through Hole
Termination Style PC Pins
Size / Dimension Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm)
Base Product Number 3262W
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8050
California Prop 65 Warning Information
Win Source Part Number 849104-3262W-1-503LF
Ultra Librarian 3D Model Ultra Librarian 3262W-1-503LF CAD Model

Description

The 849104-3262W-1-503LF is a top-adjustment potentiometer manufactured by Bourns Inc.

  • Series: Trimpot® 3262 - Sealed
  • Resistance: 50 kOhms
  • Tolerance: ±10%
  • Material: Cermet
  • Power Rating: 0.25W (1/4W)
  • Turns: 12
  • Termination Style: PC Pins
  • Package: Tube
  • Shape: Rectangular
  • Face Size: 0.250" x 0.170" (6.35mm x 4.32mm)
  • Mounting Type: Through-Hole
  • REACH: Affected
  • California Prop 65: Complies
