Same model may have multiple batches, images only for reference.

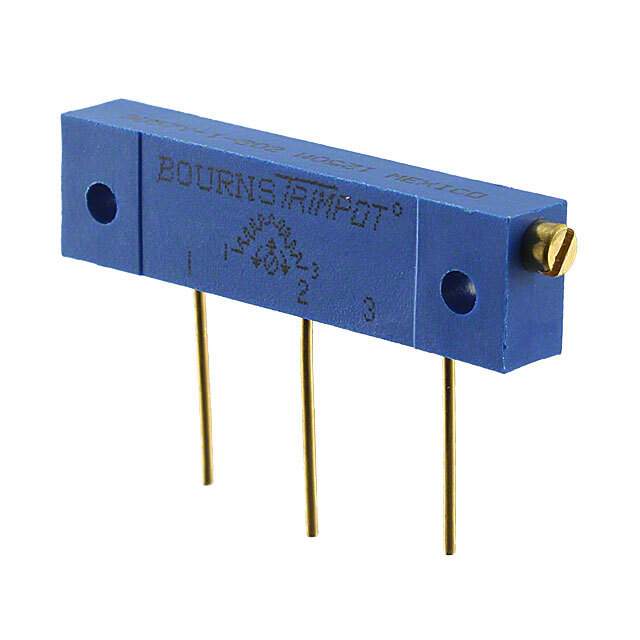

3057P-1-201 Real Image
Same model may have multiple batches, images only for reference.

3057P-1-201

Part No 3057P-1-201
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 200 OHM 1W PC PIN
Datasheet
3057P-1-201 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Series Trimpot 3057 - Sealed
Packaging Tube
Resistance (Ohms) 200
Power (Watts) 1W
Tolerance ±5%
Temperature Coefficient ±50ppm/°C
Number of Turns 22
Adjustment Type Side Adjustment
Resistive Material Wirewound
Mounting Chassis Mount
Termination Style PC Pins
Dimension Rectangular - 0.315" x 0.190" Face x 1.250" L (8.00mm x 4.83mm x 31.75mm)
Win Source Part Number 763080-3057P-1-201
Popularity Medium
Supply and Demand Status Limited
Family Name 3057
Introduction Date September 25, 1997
ECCN EAR99
Country of Origin Costa Rica, Taiwan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 3057P-1-201 CAD Model

Description

The Bourns Inc. 763080-3057P-1-201 is a trimpot 3057 - sealed series potentiometer from Bourns Inc..

  • Power Rating: 1W
  • Resistance: 200 ohms
  • Tolerance: ±5%
  • Temperature Coefficient: ±50ppm/°C
  • Turns: 22
  • Adjustment Type: Side Adjustment
  • Resistive Material: Wirewound
  • Packaging: Tube
  • Mounting Type: Chassis Mount
