Same model may have multiple batches, images only for reference.

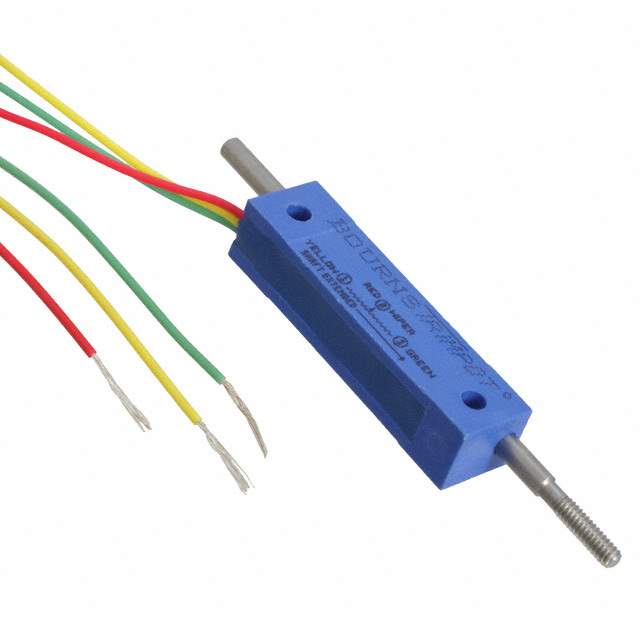

3048L-5-502 Real Image
Same model may have multiple batches, images only for reference.

3048L-5-502

Part No 3048L-5-502
Manufacturer Bourns Inc.
Catalog Potentiometers, Variable Resistors
Description SENSOR LINEAR 12.7MM WIRE LEADS  /  Resistive Sensor Linear Position Round Shaft Wire Leads
Datasheet
3048L-5-502 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Position Sensors - Angle, Linear Position Measuring
Mfr Bourns Inc.
Package Bulk
For Measuring Linear Position
Technology Resistive
Linear Range 0 ~ 12.70mm (0 ~ 0.50")
Output Resistive
Actuator Type Round Shaft
Linearity ±5%
Resistance 5 kOhms
Resistance Tolerance ±20%
Mounting Type Chassis Mount
Termination Style Wire Leads
Temperature Range - Operating -55°C ~ 125°C
Package / Case Module, Wire Leads, Threaded
Base Product Number 3048L
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Other Names 3048L5502
Standard Package 25
Win Source Part Number 994588-3048L-5-502
Ultra Librarian 3D Model Ultra Librarian 3048L-5-502 CAD Model

Description

The 3048L-5-502 is a resistive linear position measuring sensor from Bourns Inc.

  • Resistance: 5 kOhms
  • Resistance Tolerance: ±20%
  • Package: Module, Wire Leads, Threaded
  • Linear Range: 0 ~ 12.70mm (0 ~ 0.50")
  • Mounting Type: Chassis Mount
  • Application: Linear Position Measuring
  • Linearity: ±5%
  • Operating Temperature: -55°C to 125°C
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8533.40.8070
