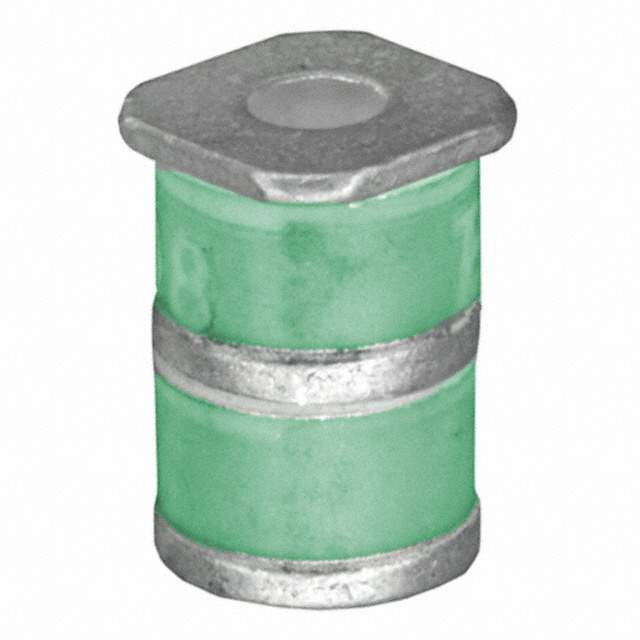

2036-47-SM-RPLF Real Image
Same model may have multiple batches, images only for reference.

2036-47-SM-RPLF

Part No 2036-47-SM-RPLF
Manufacturer Bourns Inc.
Catalog Gas Discharge Tube Arresters (GDT)
Description GDT 470V 20% 10KA SURFACE MOUNT
Datasheet
2036-47-SM-RPLF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Voltage - DC Spark Over (Nom) 470V
Impulse Discharge Current (8/20μs) 10000A (10kA)
Tolerance ±20%
Number of Poles 3
Fail Short No
Mounting SMD (SMT)
Dimension 3-SMD Cylinder Square End
Win Source Part Number 1002972-2036-47-SM-RPLF
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 2036-47-SM-RPLF CAD Model

Description

The Bourns Inc. 1002972-2036-47-SM-RPLF is an active circuit protection component with a ±20% tolerance and a voltage - DC spark over (nom) of 470V.

  • Manufacturer: Bourns Inc.
  • Tolerance: ±20%
  • Voltage - DC spark over (nom): 470V
  • Impulse Discharge Current (8/20μs): 10000A (10kA)
  • Poles: Three
  • Mounting Type: SMD (SMT)
  • Packaging: 3-SMD cylinder square end
  • Market Status: open
  • Supply and Demand Status: Sufficient
