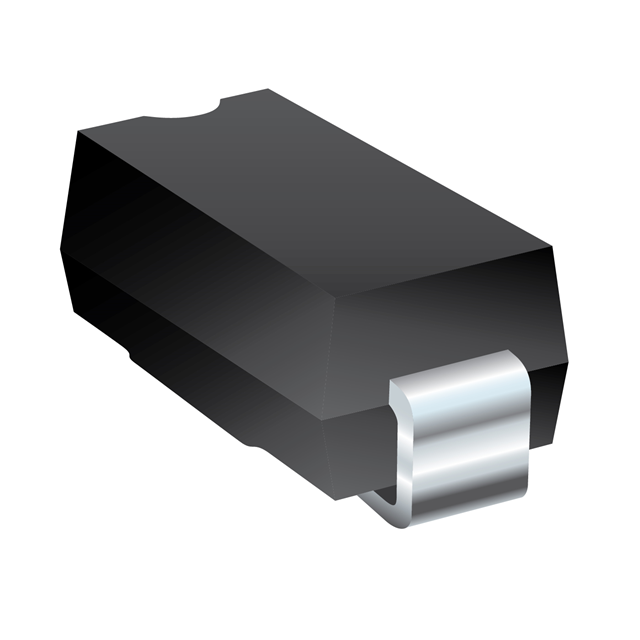

1.5SMBJ40CA-H Real Image
Same model may have multiple batches, images only for reference.

1.5SMBJ40CA-H

Part No 1.5SMBJ40CA-H
Manufacturer Bourns Inc.
Catalog TVS - Diodes
Description DIO TVS VRWM 40V 1500W BIDIR SMB / 64.5V Clamp 23.3A Ipp Tvs Diode Surface Mount SMB (DO-214AA)
Datasheet
1.5SMBJ40CA-H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Bourns Inc.
Series Automotive, AEC-Q101, 1.5SMBJ
Package Tape & Reel (TR)
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 40V
Voltage - Breakdown (Min) 44.4V
Voltage - Clamping (Max) @ Ipp 64.5V
Current - Peak Pulse (10/1000µs) 23.3A
Power - Peak Pulse 1500W (1.5kW)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case DO-214AA, SMB
Supplier Device Package SMB (DO-214AA)
Base Product Number 1.5SMBJ
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names 118-1.5SMBJ40CA-HTR
Standard Package 500
Win Source Part Number 1094152-1.5SMBJ40CA-H
Ultra Librarian 3D Model Ultra Librarian 1.5SMBJ40CA-H CAD Model

Description

The 1.5SMBJ40CA-HTR model from Bourns Inc. is a Zener type of TVS-diode that is designed for use in various electronic applications such as general purpose.

  • Channel Type: bidirectional
  • Voltage - reverse standoff (typ): 40V
  • Voltage - breakdown (min): 44.4V
  • Voltage - clamping (max) @ Ipp: 64.5V
  • Power - peak pulse: 1500W (1.5kW)
  • Current - peak pulse (10/1000µs): 23.3A
  • Package/Case Type: DO-214AA, SMB
  • Mounting: SMD (SMT)
  • Temperature Range: -55°C ~ 150°C (TJ)
