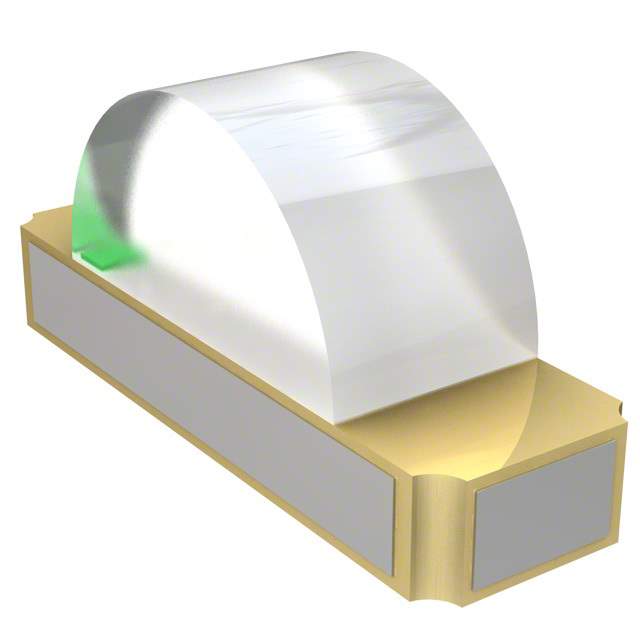

Same model may have multiple batches, images only for reference.

SM1204BC-R/B

Name: SM1204BC-R/B
Brand: Bivar Inc.
SKU: 1231263
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SM1204BC-R/B
Manufacturer	Bivar Inc.
Catalog	LED Indication - Discrete
Description	LED BLUE/RED CLEAR 1204 SMD R/A / Blue, Red 470nm Blue, 631nm Red LED Indication - Discrete 2.9V Blue, 2.1V Red 1204 (3210 Metric)
Datasheet	SM1204BC-R/B Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Optoelectronics>LED Indication - Discrete
Mfr	Bivar Inc.
Package	Tape & Reel
Color	Blue, Red
Configuration	Common Anode
Lens Color	Colorless
Lens Transparency	Clear
Millicandela Rating	115mcd Blue, 115mcd Red
Lens Style	Rectangle with Domed Top
Lens Size	2.00mm x 1.00mm
Voltage - Forward (Vf) (Typ)	2.9V Blue, 2.1V Red
Current - Test	20mA Blue, 20mA Red
Viewing Angle	130°
Mounting Type	Surface Mount, Right Angle
Wavelength - Dominant	470nm Blue, 631nm Red
Wavelength - Peak	468nm Blue, 645nm Red
Package / Case	1204 (3210 Metric)
Supplier Device Package	1204
Dimension	3.20mm L x 1.50mm W
Height (Max)	1.00mm
Base Product Number	SM1204
MSL Level	4 (72 Hours)
ECCN	EAR99
HTSUS	8541.41.0000
Other Names	492-1230-1,492-1230-2,492-1230-6,SM1204BCRB
Standard Package	3,000
Win Source Part Number	1231263-SM1204BC-R/B
Ultra Librarian 3D Model	Ultra Librarian SM1204BC-R/B CAD Model

Alternative Products

Description

The Bivar Inc. 1231263-SM1204BC-R/B is a blue and red LED indication discrete electronic component from Bivar Inc.

LED Color: Blue and Red
Configuration: Common Anode
Viewing Angle: 130 Degrees
Lens Transparency: Clear
Millicandela Rating: 115mcd (Blue), 115mcd (Red)
Voltage-Forward (Vf): 2.9V (Blue), 2.1V (Red) (typical)
Packaging: Tape and Reel
Standard Package: 3,000
Mounting: Surface-Mount Device (SMD), Right-Angle
Dimension: 3.20mm L x 1.50mm W
Lens Style: Rectangle with Domed Top
Lens Size: 2.00mm x 1.00mm
