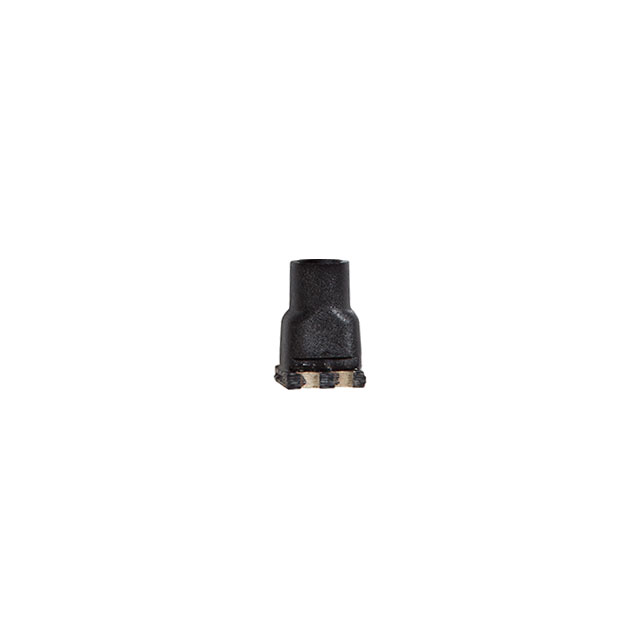

SMTV01-B11 Real Image
Same model may have multiple batches, images only for reference.

SMTV01-B11

Part No SMTV01-B11
Manufacturer Bivar Inc.
Catalog Optics - LEDs - Light Pipes
Description LIGHT PIPE ADAPTER BLU / Light Pipe Single Blue Rigid Board Mount, Press Fit
Datasheet
SMTV01-B11 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Optics - Light Pipes
Mfr Bivar Inc.
Series SMTV01
Package Tape & Reel
Color Blue
Configuration Single
Type Rigid
Mounting Type Board Mount, Press Fit
Lens Style Round with Flat Top
Base Product Number SMTV01
Other Names 492-1952-6,492-1952-1,492-1952-2
Standard Package 500
MSL Level 4 (72 Hours)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1237887-SMTV01-B11
Ultra Librarian 3D Model Ultra Librarian SMTV01-B11 CAD Model

Description

The SMTV01-B11 is a rigid, single configuration light pipe from Bivar Inc.

  • Lens Style: round lens style with a flat top
  • Color: available in blue color
  • Lens Size: not specified
  • Mounting: board mountable and can be press fit
  • Packaging: tape and reel packaging
  • Standard Package: 500
  • ECCN: EAR99
  • MSL Level: 4 (72 hours)
  • HTSUS: 8541.41.0000
  • Also Known As: 492-1952-6, 492-1952-1, 492-1952-2
