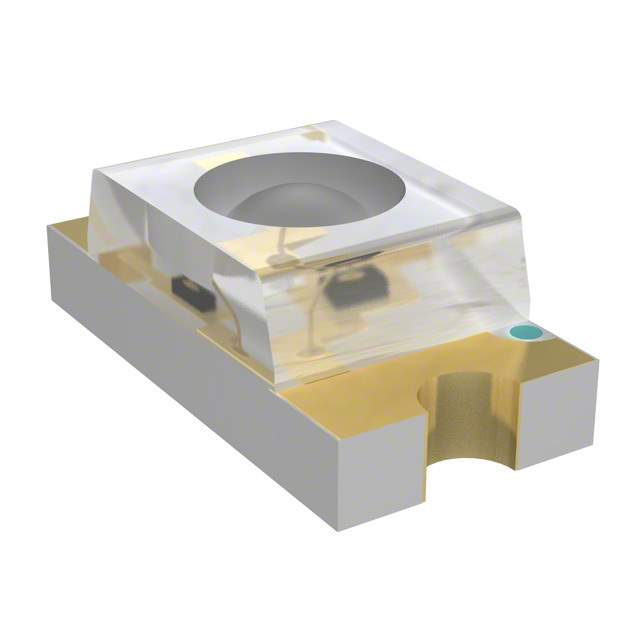

The SM1206UBWC is a blue-white chip LED manufactured by Bivar Inc. It is a surface-mount device (SMD) designed for various indicator and backlighting applications. Its compact size and efficient light output make it suitable for space-constrained designs.

Applications

• Backlighting for LCDs and keypads
• Indicator lights
• Consumer electronics
• Mobile devices
• Medical devices

Features

• Small 1206 package size
• Blue-White color
• Surface Mount Technology (SMT)
• Wide viewing angle
• Low power consumption
• High luminous intensity

Benefits

• Compact Design: The small 1206 package allows for high-density mounting and space savings.
• Clear Illumination: Provides bright and uniform blue-white light output.
• Efficient Power Usage: Low power consumption contributes to energy savings.
• Easy Assembly: SMT compatibility simplifies manufacturing processes.
• Versatile Applications: Suitable for a variety of indicator and backlighting purposes.

Additional Details

The SM1206UBWC typically has a forward voltage around 3.0 to 3.6V and a forward current of approximately 20mA. The dominant wavelength for the blue component is around 465 nm, and the correlated color temperature (CCT) for the white component typically ranges from 6000K to 8000K. The viewing angle is generally wide, allowing for broad light distribution. The device is typically packaged on tape and reel for automated assembly. Operating temperature range usually falls between -40°C and +85°C. It's crucial to consult the specific datasheet for detailed electrical and optical characteristics.
