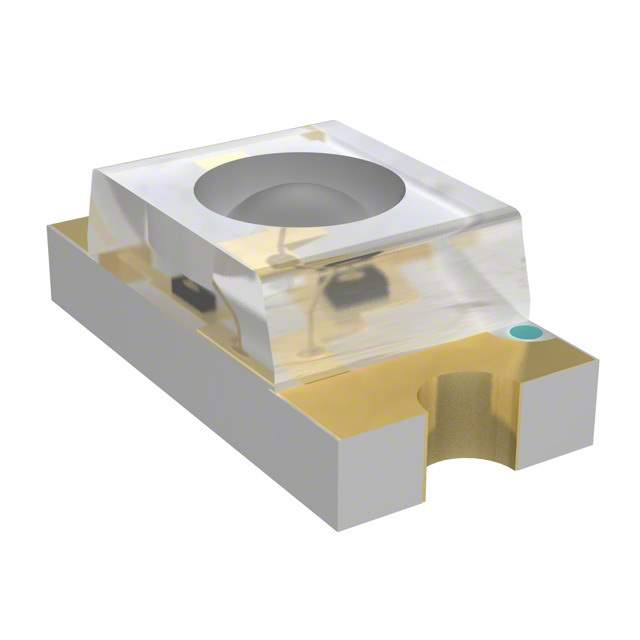

SM1206BWC Real Image
Same model may have multiple batches, images only for reference.

SM1206BWC

Part No SM1206BWC
Manufacturer Bivar Inc.
Catalog LED Indication - Discrete
Description LED BLUE CLEAR 1206 SMD / Blue 466nm LED Indication - Discrete 3.9V 1206 (3216 Metric)
Datasheet
SM1206BWC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Bivar Inc.
Package Tape & Reel (TR)
Color Blue
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 9mcd
Lens Style Rectangle with Flat Top
Lens Size 2.00mm x 1.60mm
Voltage - Forward (Vf) (Typ) 3.9V
Current - Test 20mA
Viewing Angle 140°
Mounting SMD (SMT)
Wavelength - Dominant 466nm
Wavelength - Peak 428nm
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Dimension 3.20mm L x 1.60mm W
Height (Max) 1.10mm
Base Product Number SM1206
Standard Package 3,000
MSL Level 4 (72 Hours)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242265-SM1206BWC
Ultra Librarian 3D Model Ultra Librarian SM1206BWC CAD Model

Description

Introducing the SM1206BWC LED Indication from Bivar Inc., a high-quality optoelectronic component that offers a viewing angle of 140 degrees and a millicandela rating of 9mcd.

  • Viewing Angle: 140 degrees
  • Millicandela Rating: 9mcd
  • Voltage-Forward: 3.9V
  • Current-Test: 20mA
  • Wavelength-Dominant: 466nm
  • Wavelength-Peak: 428nm
  • Lens Style: Rectangle with a flat top
  • Lens Size: 2.00mm x 1.60mm
  • Packaging: Tape and reel
  • Standard Package: 3,000
  • Height: 1.10mm
  • Dimension: 3.20mm L x 1.60mm W
