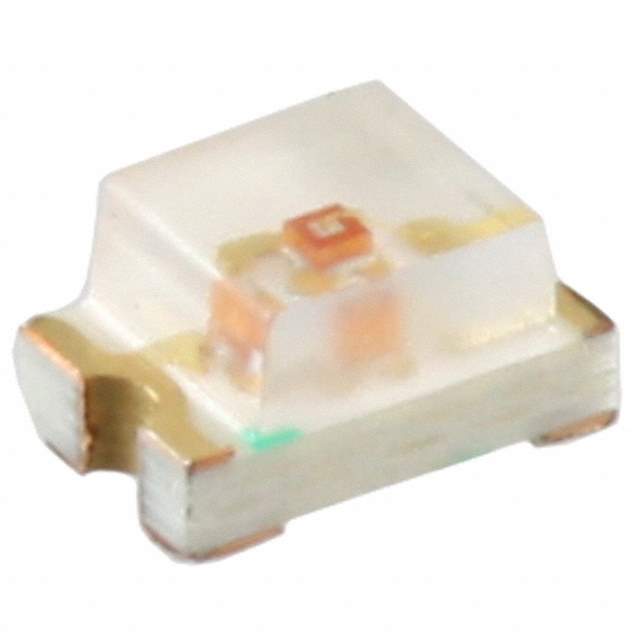

SM0805HCL Real Image
Same model may have multiple batches, images only for reference.

SM0805HCL

Part No SM0805HCL
Manufacturer Bivar Inc.
Catalog LED Indication - Discrete
Description LED RED CLEAR 0805 SMD / Red 631nm LED Indication - Discrete 1.9V 0805 (2012 Metric)
Datasheet
SM0805HCL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Bivar Inc.
Package Tape & Reel
Color Red
Configuration Independent
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 11.5mcd
Lens Style Rectangle with Flat Top
Lens Size 1.40mm x 1.20mm
Voltage - Forward (Vf) (Typ) 1.9V
Current - Test 2mA
Viewing Angle 130°
Mounting SMD (SMT)
Wavelength - Dominant 631nm
Wavelength - Peak 645nm
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Dimension 2.00mm L x 1.20mm W
Height (Max) 0.80mm
Base Product Number SM0805
Other Names 492-2281-6,492-2281-2,492-2281-1,SM0805HCL,492-2281,492-2281
Standard Package 4,000
MSL Level 4 (72 Hours)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242316-SM0805HCL
Ultra Librarian 3D Model Ultra Librarian SM0805HCL CAD Model

Description

The SM0805HCL is a Red LED Indication - Discrete optoelectronic component from Bivar Inc.

  • Package: 0805 (2012 Metric)
  • Lens Style: Rectangle with flat top
  • Lens Size: 1.40mm x 1.20mm
  • Lens Color: Colorless
  • Lens Transparency: Clear
  • Viewing Angle: 130 degrees
  • Wavelength - Dominant: 631nm
  • Peak Wavelength: 645nm
  • Millicandela Rating: 11.5mcd
  • Forward Voltage: 1.9V
  • Test Current: 2mA
  • Height: 0.80mm
  • Mounting Type: SMD (SMT)
  • Packaging: Tape and Reel
