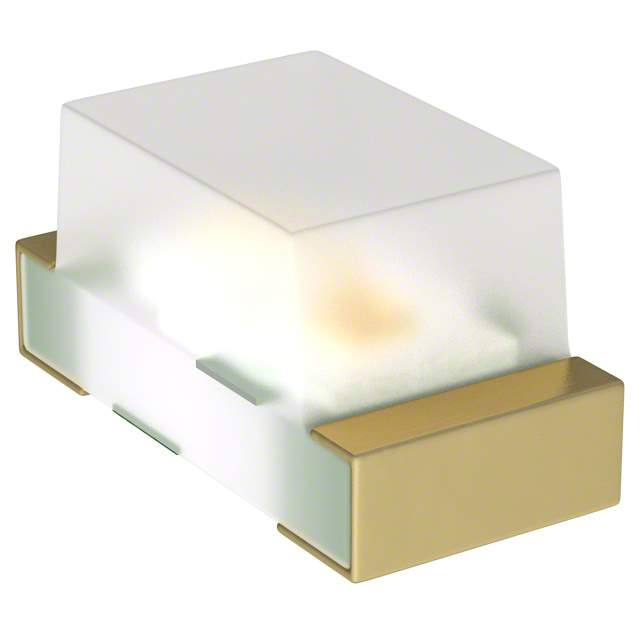

SM0603UV-395

Part No SM0603UV-395
Manufacturer Bivar Inc.
Catalog Infrared, UV, Visible Emitters
Description EMITTER UV 400NM 100MA 603 / Ultraviolet (UV) Emitter 395nm ~ 400nm 3.4V 25mA 130° 0603 (1608 Metric)
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Emitters - Infrared, UV, Visible
Mfr Bivar Inc.
Package Tape & Reel
Type Ultraviolet (UV)
Current - DC Forward (If) (Max) 25mA
Wavelength 395nm ~ 400nm
Voltage - Forward (Vf) (Typ) 3.4V
Viewing Angle 130°
Orientation Top View
Temperature Range - Operating -30°C ~ 80°C (TA)
Mounting SMD (SMT)
Package / Case 0603 (1608 Metric)
Base Product Number SM0603
Other Names SM0603UV395,492-1949-6,492-1949-1,492-1949-2
Standard Package 4,000
MSL Level 4 (72 Hours)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242391-SM0603UV-395
Ultra Librarian 3D Model Ultra Librarian SM0603UV-395 CAD Model

Description

The SM0603UV-395 is an ultraviolet (UV) LED emitter that belongs to the optoelectronics category.

  • View: Top-view
  • Package: Tape and reel
  • Standard Package: 4,000 LED emitters
  • Maximum DC Forward Current: 25mA
  • Viewing Angle: 130°
  • Voltage Forward (Vf): 3.4V
  • Wavelength: 395nm to 400nm
  • Package/Case: 0603 (1608 metric)
  • Operating Temperature Range: -30°C to 80°C
