Same model may have multiple batches, images only for reference.

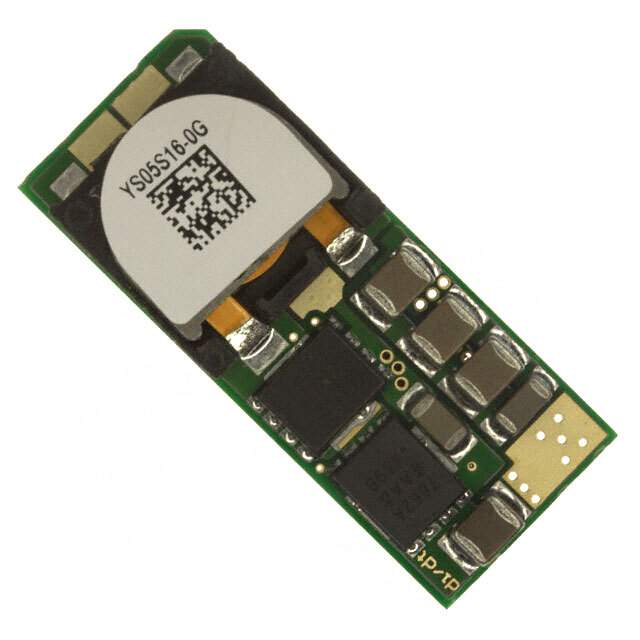

YS05S16-DG Real Image
Same model may have multiple batches, images only for reference.

YS05S16-DG

Part No YS05S16-DG
Manufacturer Bel Power Solutions
Catalog Power Supplies Board Mount DCDC Converters
Description DC/DC CONVERTER 0.7525-3.63V 58W / Module DC-DC 5VIN 1-OUT 0.7525V to 3.63V 16A 58W 6-Pin SMD
Datasheet
YS05S16-DG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Bel Power Solutions
Series Y
Packaging Bulk
Type Non-Isolated PoL Module
Number of Outputs 1
Input Voltage MIN 3V
Voltage Input MAX 5.5V
Voltage - Output 1 0.7525 ~ 3.63 V
Current - Output (Maximum) 16A
Power (Watts) 58W
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, UVLO
Operating Temperature Range -40°C ~ 85°C
Efficiency 93%
Mounting SMD
Package 6-SMD Module
Dimension 1.30" L x 0.53" W x 0.32" H (33.0mm x 13.5mm x 8.0mm)
Control Features Enable, Active Low
Win Source Part Number 800215-YS05S16-DG
Popularity Medium
Supply and Demand Status Limited
Quantity per package 100
Family Name YS05S16
Introduction Date April 28, 2014
Country of Origin China, Malaysia
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian YS05S16-DG CAD Model

Description

The Bel Power Solutions YS05S16-DG is a non-isolated PoL module with SMD mounting.

  • Mounting: SMD
  • Package: 6-SMD module
  • Power: 58W
  • Output Voltage: 0.7525 ~ 3.63V
  • Series: YS05S16
  • Packaging: Bulk
  • Input Voltage: 3V to 5.5V
  • Current Output: 16A
  • Applications: Power Supplies - Board Mount
  • Dimensions: 1.30" L x 0.53" W x 0.32" H (33.0mm x 13.5mm x 8.0mm)
  • Features: Remote on/off, OCP, OTP, UVLO
  • EOL Date: 2026
