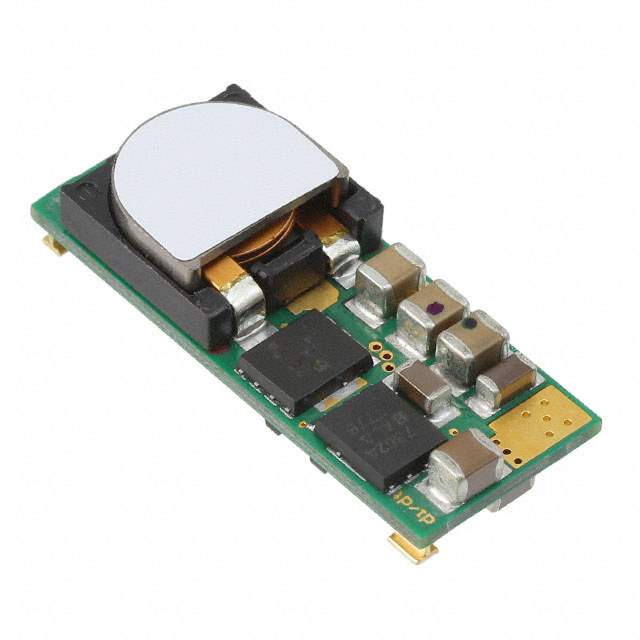

Same model may have multiple batches, images only for reference.

YNS05S16-0

Name: YNS05S16-0
Brand: Bel Power Solutions
SKU: 1336481
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	YNS05S16-0
Manufacturer	Bel Power Solutions
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 0.7525-3.63V 58W / Non-Isolated PoL Module DC DC Converter 1 Output 0.7525 ~ 3.63V 16A 3V - 5.5V Input
Datasheet	YNS05S16-0 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Bel Power Solutions
Packaging	Bulk
Product Status	Obsolete
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	3V
Voltage - Input (Max)	5.5V
Voltage - Output 1	0.7525 ~ 3.63V
Current - Output (Max)	16A
Power (Watts)	58 W
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, UVLO
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	94%
Mounting	Surface Mount
Case / Package	6-SMD Module
Size / Dimension	1.30" L x 0.53" W x 0.32" H (33.0mm x 13.5mm x 8.0mm)
Control Features	Enable, Active High
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	2266-YNS05S16-0,-YNS05S16-0
Standard Package	85
Win Source Part Number	1336481-YNS05S16-0
Ultra Librarian 3D Model	Ultra Librarian YNS05S16-0 CAD Model

Alternative Products

Description

The Bel Power Solutions 1336481-YNS05S16-0 is a non-isolated PoL module that is ideal for ITE (Commercial) applications.

Features: Remote on/off, OCP, OTP, and UVLO.
Power Output: 58W.
Maximum Output Current: 16A.
Efficiency: 94%.
Voltage Input: 3V to 5.5V.
Output Voltage: 0.7525V to 3.63V.
Mounting Style: Surface mount.
Package: 6-SMD module.
Operating Temperature: -40°C to 85°C.
Product Status: Obsolete.
RoHS Compliance: RoHS non-compliant.
