Same model may have multiple batches, images only for reference.

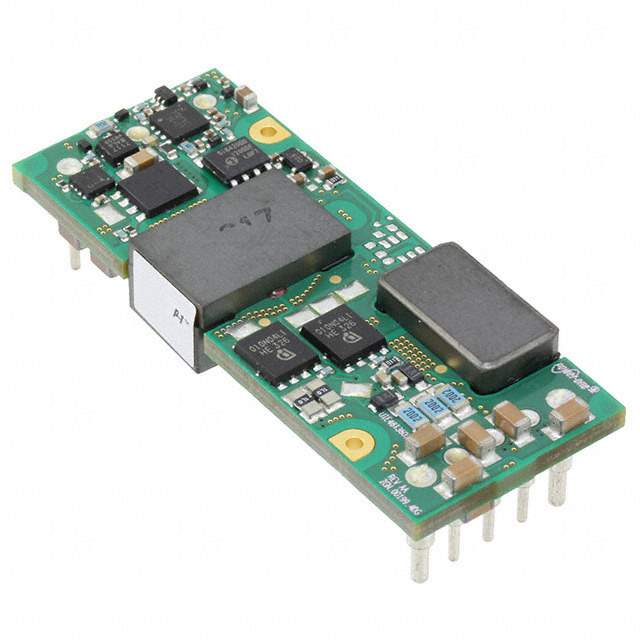

UIE48T36033-PDA0G Real Image
Same model may have multiple batches, images only for reference.

UIE48T36033-PDA0G

Part No UIE48T36033-PDA0G
Manufacturer Bel Power Solutions
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 3.3V 120W / Isolated Module DC DC Converter 1 Output 3.3V 36A 18V - 75V Input
Datasheet
UIE48T36033-PDA0G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Bel Power Solutions
Series UIB (120W)
Package Tray
Product Status Obsolete
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 3.3V
Current - Output (Max) 36A
Power (Watts) 120 W
Voltage - Isolation 2.25 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 90.5%
Mounting Type Through Hole
Package / Case 8-DIP Module, 1/8 Brick
Dimension 2.30" L x 0.90" W x 0.44" H (58.4mm x 22.9mm x 11.1mm)
Control Features Enable, Active High
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 179-2755,2266-UIE48T36033-PDA0G
Standard Package 35
Win Source Part Number 1011586-UIE48T36033-PDA0G
Ultra Librarian 3D Model Ultra Librarian UIE48T36033-PDA0G CAD Model

Description

The Bel Power Solutions 1011586-UIE48T36033-PDA0G is a power supply component designed for use in ITE (Commercial) applications.

  • Series: UIB (120W)
  • Type: isolated module
  • Package: tray
  • Standard Package: 35 units
  • Features: Remote On/Off, OCP, OTP, OVP, and UVLO
  • Efficiency: 90.5%
  • Voltage Isolation: 2.25 kV
  • Current Output: 36A
  • Voltage Input: 18V to 75V
  • Voltage Output: 3.3V
  • Control Features: enable and active high
  • Mounting Type: through-hole
  • Package/Case: 8-DIP module, 1/8 Brick
  • Temperature Range: -40°C to 85°C
  • MSL Level: 1 (unlimited)
  • REACH: unaffected
  • HTSUS Code: 8504.40.9580
  • Status: obsolete
  • Other Names: 179-2755 and 2266-UIE48T36033-PDA0G
