Same model may have multiple batches, images only for reference.

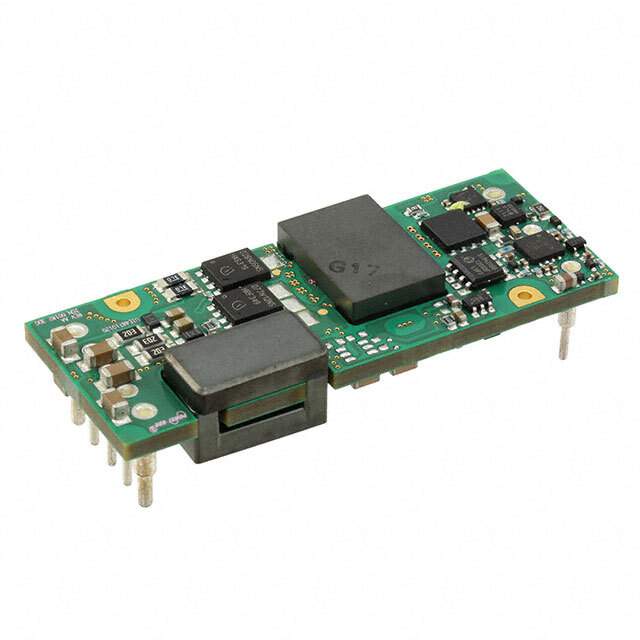

UIE48T10120-NDA0G Real Image
Same model may have multiple batches, images only for reference.

UIE48T10120-NDA0G

Part No UIE48T10120-NDA0G
Manufacturer Bel Power Solutions
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 120W / Isolated Module DC DC Converter 1 Output 12V 10A 18V - 75V Input
Datasheet
UIE48T10120-NDA0G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Bel Power Solutions
Series UIB (120W)
Package Tray
Product Status Obsolete
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Current - Output (Max) 10A
Power (Watts) 120 W
Voltage - Isolation 2.25 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 92.5%
Mounting Type Through Hole
Package / Case 8-DIP Module, 1/8 Brick
Dimension 2.30" L x 0.90" W x 0.44" H (58.4mm x 22.9mm x 11.1mm)
Control Features Enable, Active Low
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 179-2762
Standard Package 35
Win Source Part Number 1220864-UIE48T10120-NDA0G
Ultra Librarian 3D Model Ultra Librarian UIE48T10120-NDA0G CAD Model

Description

The Bel Power Solutions UIB (120W) is an isolated module that features remote on/off, overcurrent protection (OCP), over temperature protection (OTP), over voltage protection (OVP), and under voltage lockout (UVLO) for reliable performance.

  • Manufacturer: Bel Power Solutions
  • Type: Isolated Module
  • Features: Remote On/Off, Overcurrent Protection (OCP), Over Temperature Protection (OTP), Over Voltage Protection (OVP), Under Voltage Lockout (UVLO)
  • Application: ITE (Commercial)
  • Power Output: 120W
  • Control Feature: Enable, Active Low
  • Output Current: 10A
  • Voltage Input: 18V to 75V
  • Output Voltage: 12V
  • Efficiency: 92.5%
  • Mounting: 8-DIP module, 1/8 brick
  • Temperature Range: -40°C to 85°C
  • Product Status: Obsolete
  • Alternative Part Cross-Reference: UIE48T10120NDA0G
