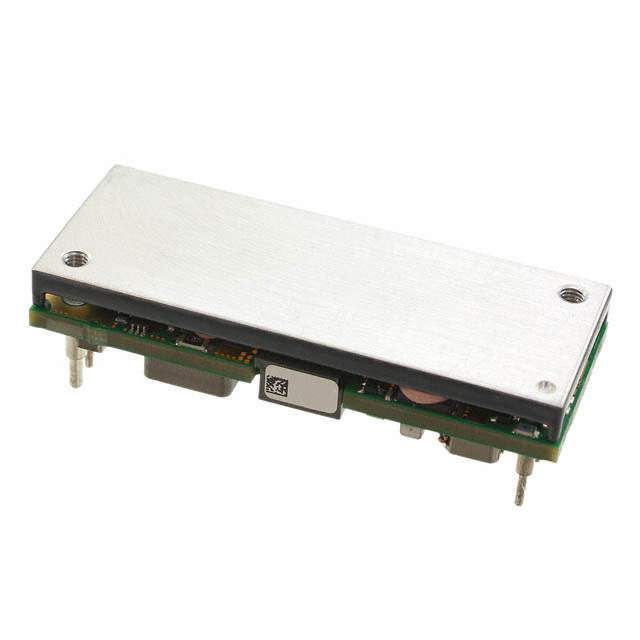

SQL48T20033-NDABG Real Image
Same model may have multiple batches, images only for reference.

SQL48T20033-NDABG

Part No SQL48T20033-NDABG
Manufacturer Bel Power Solutions
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 3.3V 66W / Isolated Module DC DC Converter 1 Output 3.3V 20A 36V - 75V Input
Datasheet
SQL48T20033-NDABG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Bel Power Solutions
Series SQL48T20033
Product Status Obsolete
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 3.3V
Current - Output (Max) 20A
Power (Watts) 66 W
Voltage - Isolation 2.25 kV
Applications ITE (Commercial)
Features Remote On/Off, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 91%
Mounting Type Through Hole
Package / Case 8-DIP Module, 1/8 Brick
Dimension 2.30" L x 0.90" W x 0.52" H (58.4mm x 22.9mm x 13.1mm)
Control Features Enable, Active Low
Other Names 179-2427,SQL48T20033NDABG,2266-SQL48T20033ABG
Standard Package 200
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1237614-SQL48T20033-NDABG
Ultra Librarian 3D Model Ultra Librarian SQL48T20033-NDABG CAD Model

Description

The Bel Power Solutions SQL48T20033 is an isolated module DC-DC converter with a power rating of 66W and an efficiency of 91%.

  • Voltage Isolation: 2.25 kV
  • Remote on/off: Yes
  • UVLO: Yes
  • Output: Single
  • Maximum Current: 20A
  • Voltage: 3.3V
  • Series: SQL48T20033
  • Package: 8-DIP module, 1/8 brick
  • Status: Balanced
