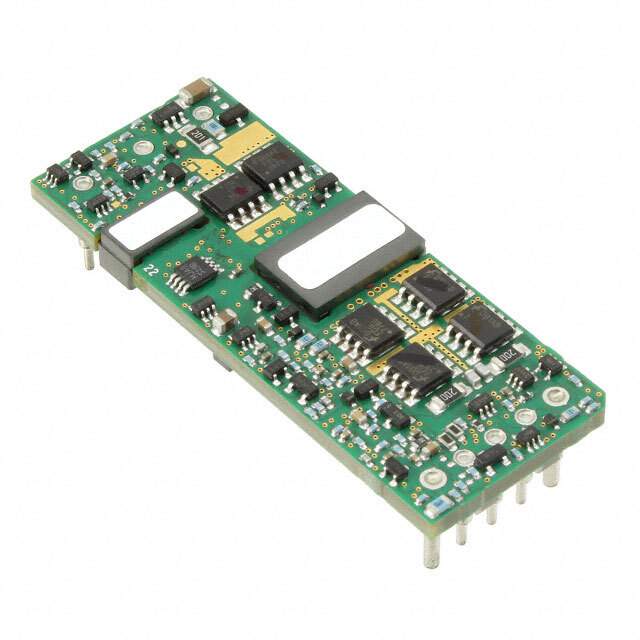

SQE48T30025-NGB0 Real Image
Same model may have multiple batches, images only for reference.

SQE48T30025-NGB0

Part No SQE48T30025-NGB0
Manufacturer Bel Power Solutions
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 2.5V 75W / Isolated Module DC DC Converter 1 Output 2.5V 30A 36V - 75V Input
Datasheet
SQE48T30025-NGB0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Bel Power Solutions
Series SQE48
Package Bulk
Product Status Obsolete
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 2.5V
Current - Output (Max) 30A
Power (Watts) 75 W
Voltage - Isolation 2.25 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 89%
Mounting Type Through Hole
Package / Case 8-DIP Module, 1/8 Brick
Dimension 2.30" L x 0.90" W x 0.41" H (58.4mm x 22.9mm x 10.4mm)
Control Features Enable, Active Low
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names -SQE48T30025-NGB0,2266-SQE48T30025-NGB0
Standard Package 33
Win Source Part Number 1005479-SQE48T30025-NGB0
Ultra Librarian 3D Model Ultra Librarian SQE48T30025-NGB0 CAD Model

Description

The SQE48T30025-NGB0 is an isolated module DC-DC converter from Bel Power Solutions, designed for power supplies board mount applications.

  • Type: Isolated Module DC-DC Converter
  • Features: Remote On/Off, Over-Current Protection (OCP), Over-Temperature Protection (OTP), Over-Voltage Protection (OVP), Under-Voltage Lockout (UVLO)
  • Power Output: 75W
  • Efficiency: 89%
  • Mounting Type: Through Hole
  • Package/Case: 8-DIP Module, 1/8 Brick
  • Temperature Range: -40°C to 85°C
  • Dimension: 2.30” L x 0.90” W x 0.41” H (58.4mm x 22.9mm x 10.4mm)
  • Application: ITE (Commercial)
  • Voltage Isolation: 2.25 kV
  • Output Count: One
  • Maximum Output Current: 30A
  • Input Voltage Range: 36V to 75V
