Same model may have multiple batches, images only for reference.

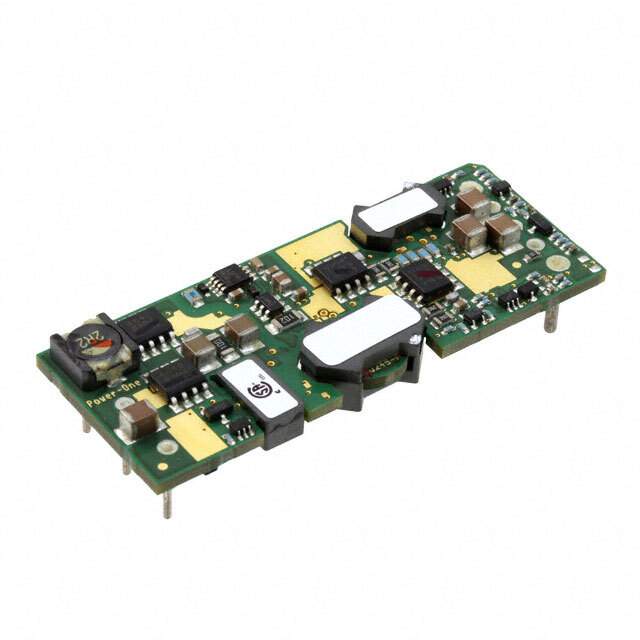

SQ24T10050-NBA0G Real Image
Same model may have multiple batches, images only for reference.

SQ24T10050-NBA0G

Part No SQ24T10050-NBA0G
Manufacturer Bel Power Solutions
Catalog Power Supplies Board Mount DCDC Converters
Description DC/DC CONVERTER 5V 50W
Datasheet
SQ24T10050-NBA0G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Bel-Power-Solutions
Series SemiQ? SQ24
Packaging Bulk
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Current - Output (Max) 10A
Power (Watts) - Manufacture Series 50W
Voltage - Isolation 2kV (2000V)
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, UVLO
Mounting Style Through Hole
Package 8-DIP Module
Size / Dimension 2.30" L x 0.90" W x 0.35" H (58.4mm x 22.8mm x 8.9mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 86%
Power (Watts) - Max 50W
Win Source Part Number 212065-SQ24T10050-NBA0G
Popularity Medium
Supply and Demand Status Limited
Quantity per package 48
Ultra Librarian 3D Model Ultra Librarian SQ24T10050-NBA0G CAD Model

Description

The SemiQ? SQ24 is an isolated module type DC-DC converter designed for use in power supplies on board mount applications.

  • Features: remote on/off, overcurrent protection, overtemperature protection, overvoltage protection, and under-voltage lockout
  • Efficiency: 86%
  • Power: delivers up to 50W of power
  • Output: single output
  • Maximum Current: 10A
  • Voltage: 5V
  • Input Voltage Range: 18V to 36V
  • Voltage Isolation: 2kV
  • Package: 8-DIP module package
  • Dimensions: 2.30" L x 0.90" W x 0.35" H (58.4mm x 22.8mm x 8.9mm)
  • Application: ITE (commercial)
