Same model may have multiple batches, images only for reference.

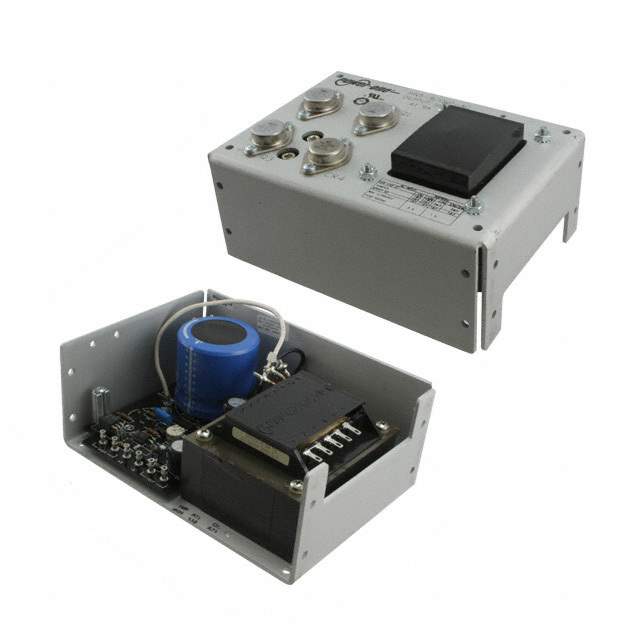

HN24-3.6-AG Real Image
Same model may have multiple batches, images only for reference.

HN24-3.6-AG

Part No HN24-3.6-AG
Manufacturer Bel Power Solutions
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 24V 86W / Linear AC DC Converters 1 Output 24V 100, 120, 220, 230, 240 VAC Input
Datasheet
HN24-3.6-AG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>AC DC Converters
Mfr Bel Power Solutions
Series Linear N
Package Bulk
Type Linear
Number of Outputs 1
Voltage - Input 100, 120, 220, 230, 240 VAC
Voltage - Output 1 24V
Current - Output 1 3.6 A
Power (Watts) 86W
Applications ITE (Commercial)
Voltage - Isolation 3 kV
Efficiency 60%
Temperature Range - Operating 0°C ~ 50°C
Features Adjustable Output, Remote Sense
Mounting Type Chassis Mount
Dimension 7.00" L x 4.87" W x 3.28" H (177.8mm x 123.7mm x 83.3mm)
Base Product Number HN24-3.6
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.6018
Other Names 179-2347,2266-HN24-3.6-AG
Standard Package 8
Win Source Part Number 1063280-HN24-3.6-AG
Ultra Librarian 3D Model Ultra Librarian HN24-3.6-AG CAD Model

Description

Bel Power Solutions' HN24-3.6-AG is an external AC DC converter that is widely used in commercial ITE applications.

  • Win Source Part Number: 1063280-HN24-3.6-AG
  • Type: Linear
  • Output: Adjustable
  • Features: Remote Sense
  • Power Rating: 86W
  • Efficiency: 60%
  • Voltage Input: 100V to 240V AC
  • Voltage Isolation: 3 kV
  • Dimension: 7.00" L x 4.87" W x 3.28" H (177.8mm x 123.7mm x 83.3mm)
  • Standard Package: 8
