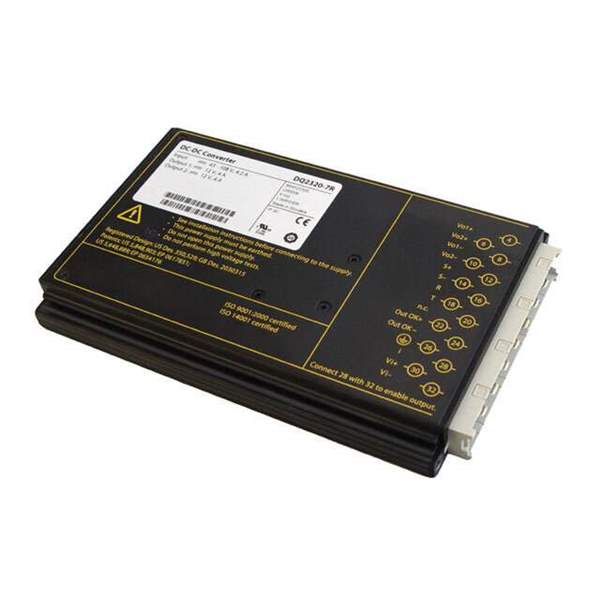

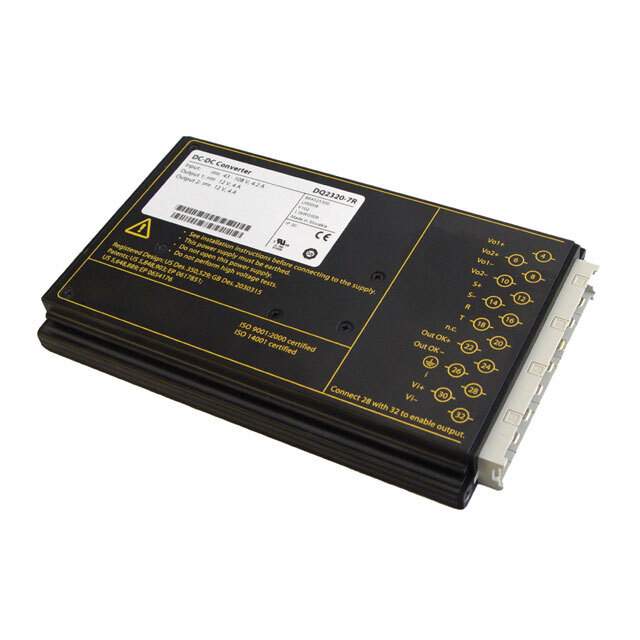

Same model may have multiple batches, images only for reference.

BQ1001-9R

Name: BQ1001-9R
Brand: Bel Power Solutions
SKU: 998441
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	BQ1001-9R
Manufacturer	Bel Power Solutions
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC/DC CONVERTER 5.1V 102W / Enclosed, Conformal Coated DC DC Converter 1 Output 5.1V 20A 36V Input
Datasheet	BQ1001-9R Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - External/Internal (Off-Board)>DC DC Converters
Mfr	Bel Power Solutions
Series	Melcher Q (66 ~ 132W)
Package	Bulk
Type	Enclosed, Conformal Coated
Voltage - Input (Min)	14.4V
Voltage - Input (Max)	36V
Number of Outputs	1
Voltage - Output 1	5.1V
Current - Output (Max)	20A
Power (Watts)	102W
Applications	ITE (Commercial), Railway
Efficiency	86%
Temperature Range - Operating	-40°C ~ 71°C
Mounting Type	Chassis Mount
Dimension	6.73" L x 4.37" W x 0.78" H (171.0mm x 111.0mm x 19.8mm)
Approval Agency	CE, CSA, EN, IEC, TUV, UL
Base Product Number	BQ1001
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	2266-BQ1001-9R
Standard Package	10
Win Source Part Number	998441-BQ1001-9R
Ultra Librarian 3D Model	Ultra Librarian BQ1001-9R CAD Model

Alternative Products

Description

The Bel Power Solutions BQ1001-9R is a DC-DC converter that has an enclosed and conformal coated type.

Power: 102W
Current Output: 20A
Input Voltage: 14.4V to 36V
Output Voltage: 5.1V
Efficiency: 86%
Applications: ITE (Commercial) and Railway
