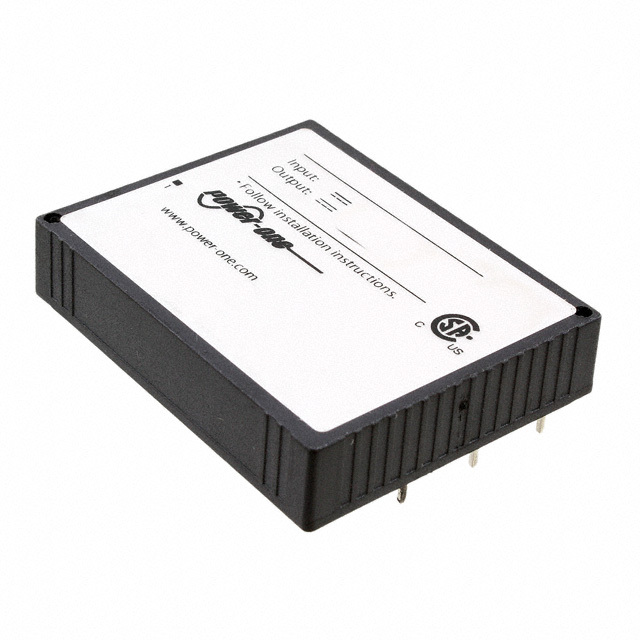

Same model may have multiple batches, images only for reference.
40IMX15-12-12-8 Bel Power Solutions – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

40IMX15-12-12-8

Part No 40IMX15-12-12-8
Manufacturer Bel Power Solutions
Catalog Board Mount AC DC Converters
Description DC DC CONVERTER 12V 12V 15W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board MountDC DC Converters
Mfr Bel Power Solutions
Series Melcher IMX15 (15W)
Packaging Bulk
Part Status Active
Type Isolated Module, Conformal Coated
Number of Outputs 2
Voltage - Input (Min) 16.8V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Voltage - Output 2 12V
Current - Output (Max) 700mA, 700mA
Power (Watts) 15 W
Voltage - Isolation 2.1 kV
Applications ITE (Commercial), Railway
Features OCP, OTP, OVP, SCP, UVLO
Operating Temperature -40°C ~ 85°C
Efficiency 88%
Mounting Type Through Hole
Package / Case 17-DIP Module, 11 Leads
Size / Dimension 2.00" L x 1.60" W x 0.41" H (50.8mm x 40.6mm x 10.5mm)
Base Product Number 40IMX15
Ultra Librarian 3D Model Ultra Librarian 40IMX15-12-12-8 CAD Model
