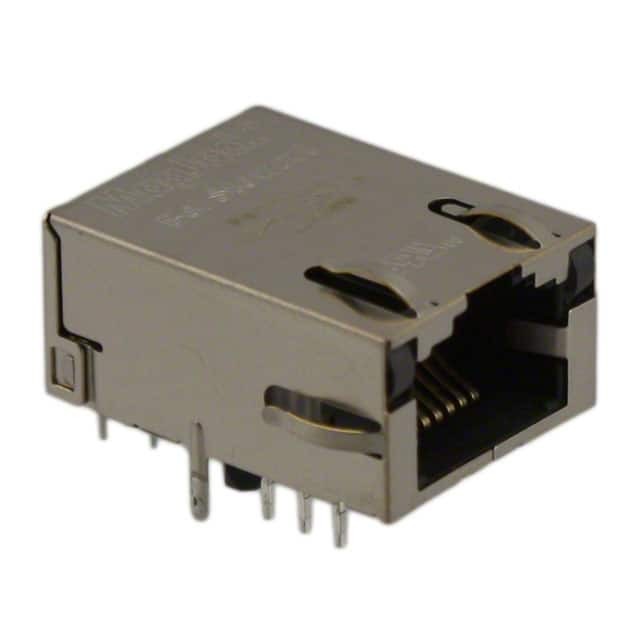

Same model may have multiple batches, images only for reference.
L829-1J1T-43
Same model may have multiple batches, images only for reference.

L829-1J1T-43

Part No L829-1J1T-43
Manufacturer Bel Fuse Inc.
Catalog Modular Connectors
Description CONN JACK 1PORT 1000 BASE-T PCB / 1 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX
Datasheet
L829-1J1T-43 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Modular Connectors - Modular Connector Jacks With Magnetics
Mfr Bel Fuse Inc.
Series MagJack®
Package Tray
Product Status Active
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100/1000 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.440" (11.18mm)
LED Color Green, Orange, Yellow - Yellow
Number of Cores per Jack 8
Shielding Shielded, EMI Finger
Features Board Guide
Tab Direction Up
Contact Material Copper Alloy
Contact Finish Gold
Temperature Range - Operating 0°C ~ 70°C
Contact Finish Thickness 30.0µin (0.76µm)
Shield Material Copper Alloy
Housing Material Polyamide (PA), Nylon
Standard Package 60 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 844805-L829-1J1T-43
Ultra Librarian 3D Model Ultra Librarian L829-1J1T-43 CAD Model

Description

The 844805-L829-1J1T-43 is a modular connector jack with magnetics from Bel Fuse Inc.'s MagJack series.

  • Board Guide: Yes
  • Orientation: 90° Angle (Right)
  • Connector Type: RJ45
  • Row: Single
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Shielding: EMI Finger Shielding
  • Applications: 10/100/1000 Base-T and AutoMDIX
  • Height Above Board: 0.440" (11.18mm)
  • Housing Material: Polyamide (PA) Nylon
  • LED Color: Green, Orange, Yellow
  • LED Indication: Yellow LED for link/activity
  • Mounting: Through-Hole
  • Operating Temperature Range: 0°C to 70°C
  • Compliance: REACH
  • Package: 60 pcs
