Same model may have multiple batches, images only for reference.

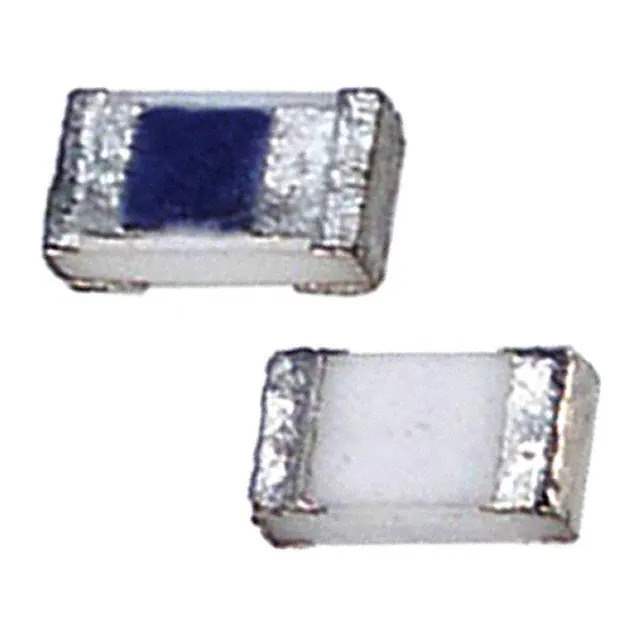

C2Q 5 Real Image
Same model may have multiple batches, images only for reference.

C2Q 5

Part No C2Q 5
Manufacturer Bel Fuse Inc.
Catalog Fuses
Description FUSE BRD MNT 5A 32VAC 32VDC 0603 / 5 A 32 V AC 32 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 0603 (1608 Metric)
Datasheet
C2Q 5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Bel Fuse Inc.
Series C2Q
Package Tape & Reel
Product Status Active
Mounting Type Surface Mount
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 5 A
Voltage Rating - AC 32 V
Voltage Rating - DC 32 V
Response Time Fast Blow
Package / Case 0603 (1608 Metric)
Breaking Capacity @ Rated Voltage 50A
Melting I2t 1.05
Approval Agency CE, cURus
Temperature Range - Operating -55°C ~ 125°C
Size / Dimension 0.063" L x 0.032" W x 0.019" H (1.60mm x 0.82mm x 0.48mm)
DC Cold Resistance 0.021 Ohms
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 853365-C2Q 5
Ultra Librarian 3D Model Ultra Librarian C2Q 5 CAD Model

Description

The 792167 is a circuit protection fuse from Bel Fuse Inc.

  • Category: Circuit Protection - Fuses
  • Product Status: Active
  • Mounting Type: Surface Mount
  • Packaging: Tape & reel
  • Application: Board Mount
  • Response Time: Fast Blow
  • Voltage Rating (AC/DC): 32V
  • Breaking Capacity: 50A @ rated voltage
  • Size: 0.063" L x 0.032" W x 0.019" H (1.60mm x 0.82mm x 0.48mm)
  • DC Cold Resistance: 0.021 Ohms
  • Standard Package: 5,000 pieces
  • ECCN: EAR99
  • MSL Level: 1 (unlimited floor life)
  • REACH Status: Unaffected
  • HTSUS Code: 8536.10.0040
