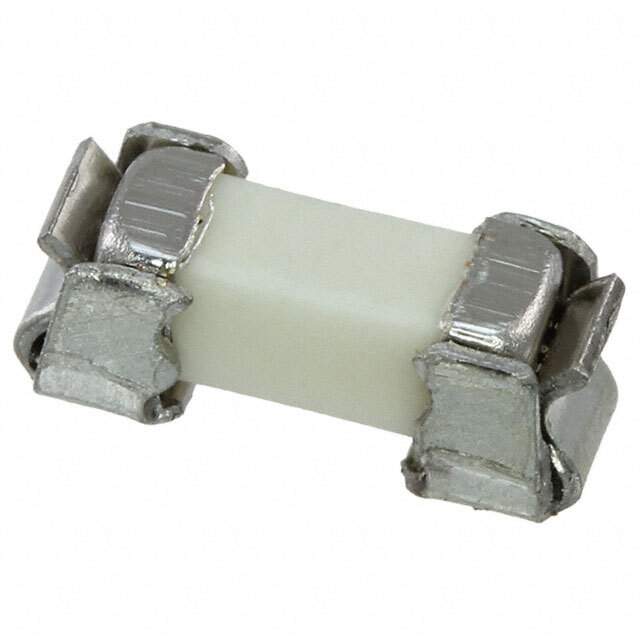

SSQC 800 Real Image
Same model may have multiple batches, images only for reference.

SSQC 800

Part No SSQC 800
Manufacturer Bel Fuse Inc.
Catalog Fuses
Datasheet
SSQC 800 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bel Fuse Inc.
Series SSQC
Package Tape & Reel (TR)
Product Status Obsolete
Mounting Type Holder, Surface Mount
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 800 mA
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Response Time Fast Blow
Package / Case 2-SMD, Square End Block with Clip
Breaking Capacity @ Rated Voltage 50A AC, 300A DC
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.330" L x 0.128" W x 0.115" H (8.38mm x 3.25mm x 2.92mm)
Other Names SSQC 800,0679-0800-12,SSQC800
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302229-SSQC 800
Ultra Librarian 3D Model Ultra Librarian SSQC 800 CAD Model

Description

This electronic component is a fuse belonging to the SSQC series and has a Win Source Part Number of 1302229-SSQC800.

  • Packaging: tape and reel package
  • Mounting: board mountable
  • Voltage Rating: 125V AC and 125V DC
  • Response Time: fast blow
  • Breaking Capacity: 50A AC and 300A DC @ rated voltage
  • Standard Package: 500
  • Mounting: holder surface mountable
  • Temperature Range: -55°C to 125°C
  • ECCN: EAR99
  • REACH: REACH unaffected
  • Current Rating: 800mA
  • Status: obsolete
  • Approval Agency: no approval agency
