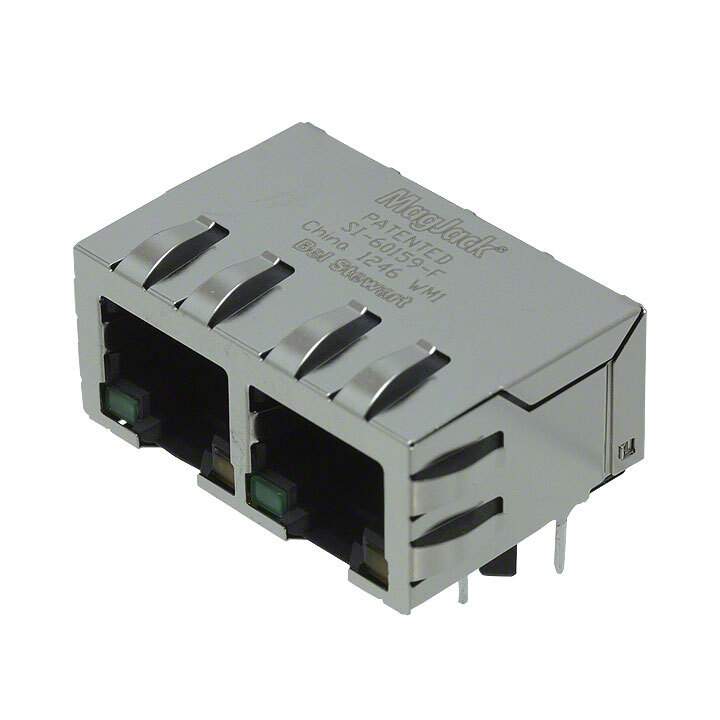

Same model may have multiple batches, images only for reference.

SI-60159-F

Name: SI-60159-F
Brand: Bel Fuse Inc.
SKU: 1333881
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	SI-60159-F
Manufacturer	Bel Fuse Inc.
Catalog	Modular Connectors
Description	CONN JACK 2PORT 100 BASE-T PCB / 2 Port RJ45Through Hole 10/100 Base-T, AutoMDIX
Datasheet	SI-60159-F Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Modular Connectors>Modular Connector Jacks With Magnetics
Manufacturer	Bel Fuse Inc.
Packaging	Tray
Connector Type	RJ45
Number of Ports	2
Number of Rows	1
Applications	10/100 Base-T, AutoMDIX
Mounting	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Height Above Board	0.545" (13.84mm)
LED Color	Green - Yellow
Number of Cores per Jack	4
Shielding	Shielded, EMI Finger
Features	Board Guide
Tab Direction	Down
Contact Material	Copper Alloy
Contact Finish	Gold
Temperature Range - Operating	0°C ~ 70°C
Contact Finish Thickness	50.0µin (1.27µm)
Shield Material	Copper Alloy
Housing Material	Thermoplastic
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	380-1245,SI60159F,507-SI-60159-F,SI-60159-F-ND,380-1245-ND
Standard Package	30
Win Source Part Number	1333881-SI-60159-F
Ultra Librarian 3D Model	Ultra Librarian SI-60159-F CAD Model

Alternative Products

Description

The Bel Fuse Inc. RJ45 connector is a high-quality modular connector jack with magnetics that can be used for 10/100 Base-T and AutoMDIX applications.

Orientation: 90-degree angle (right)
Ports: Two
Shielding: EMI finger
Housing Material: Thermoplastic
Feature: Board guide
Mounting: Through hole
Contact Finish: Gold
Contact Finish Thickness: 50.0μin (1.27μm)
Contact Material: Copper alloy
Height Above Board: 0.545" (13.84mm)
Shielding Material: Copper alloy
Temperature Range: 0°C ~ 70°C
ROHS3 Compliant: Yes
Cores per Jack: Four
Tab Direction: Down
Standard Package: 30
