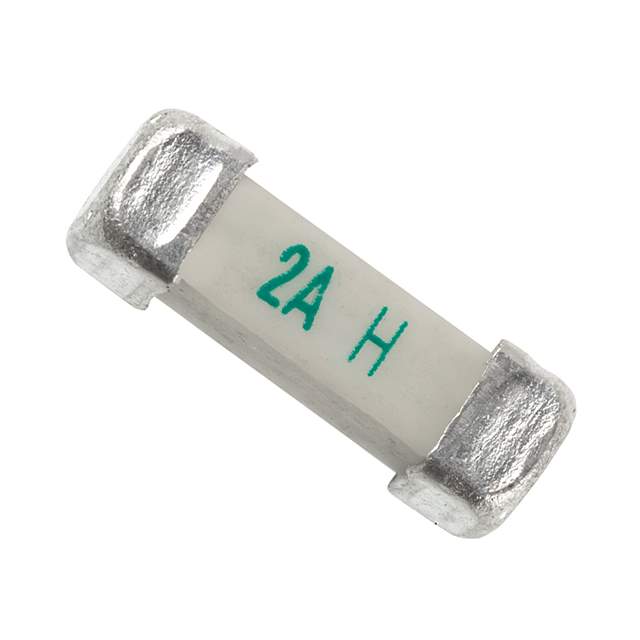

0ACH-9800-TE Real Image
Same model may have multiple batches, images only for reference.

0ACH-9800-TE

Part No 0ACH-9800-TE
Manufacturer Bel Fuse Inc.
Catalog Fuses
Description FUSE BRD MT 80A 125VAC 72VDC SMD / 80 A 125 V AC 72 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
Datasheet
0ACH-9800-TE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Bel Fuse Inc.
Series 0ACH
Package Tape & Reel
Mounting Type Surface Mount
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 80 A
Voltage Rating - AC 125 V
Voltage Rating - DC 72 V
Response Time Fast Blow
Package / Case 2-SMD, Square End Block
Breaking Capacity @ Rated Voltage 500A AC, 1kA DC
Melting I2t 1700
Approval Agency AEC-Q200, cURus
Temperature Range - Operating -40°C ~ 125°C
Size / Dimension 0.484" L x 0.177" W x 0.177" H (12.30mm x 4.50mm x 4.50mm)
DC Cold Resistance 0.00044 Ohms
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1338568-0ACH-9800-TE
Ultra Librarian 3D Model Ultra Librarian 0ACH-9800-TE CAD Model

Description

The Bel Fuse Inc. circuit protection fuse is an 80A board mount fast-blow fuse that is part of the 0ACH series.

  • Voltage Rating (AC): 125V
  • Voltage Rating (DC): 72V
  • Breaking Capacity @ Rated Voltage (AC): 500A
  • Breaking Capacity @ Rated Voltage (DC): 1kA
  • Melting I2t: 1700
  • DC Cold Resistance: 0.00044 Ohms
  • Mounting Type: Surface Mount
  • Package/Case: 2-SMD, Square End Block-Shaped
  • Operating Temperature Range: -40°C to 125°C
  • Dimensions: 0.484" L x 0.177" W x 0.177" H (12.30mm x 4.50mm x 4.50mm)
  • Approval: AEC-Q200, cURus
