Same model may have multiple batches, images only for reference.

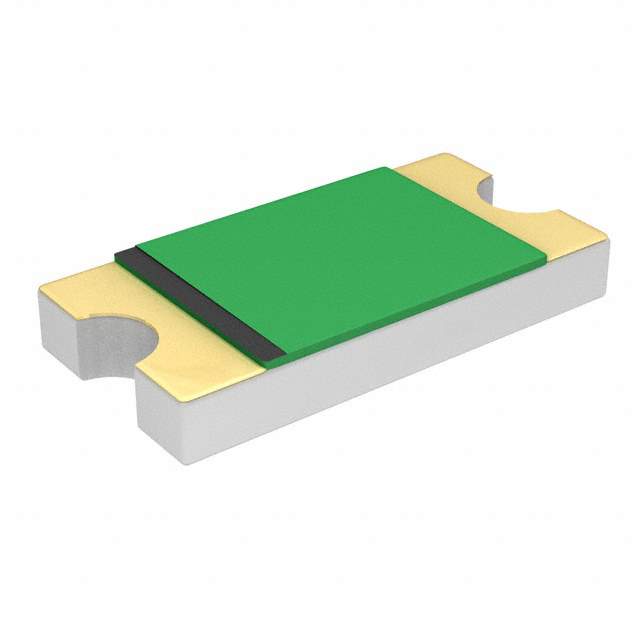

0ZCJ0075AF2E Real Image
Same model may have multiple batches, images only for reference.

0ZCJ0075AF2E

Part No 0ZCJ0075AF2E
Manufacturer Bel Fuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 16V 750MA 1206  /  Polymeric PTC Resettable Fuse 16V 750 mA Ih Surface Mount 1206 (3216 Metric), Concave
Datasheet
0ZCJ0075AF2E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Bel Fuse Inc.
Series 0ZCJ
Package Tape & Reel
Type Polymeric
Voltage - Max 16V
Current - Max 100 A
Current - Hold (Ih) (Max) 750 mA
Current - Trip (It) 1.5 A
Time to Trip 200 ms
Resistance - Initial (Ri) (Min) 90 mOhms
Resistance - Post Trip (R1) (Max) 290 mOhms
Temperature Range - Operating -40°C ~ 85°C
Ratings AEC-Q200
Mounting SMD (SMT)
Package / Case 1206 (3216 Metric), Concave
Dimension 0.128" L x 0.065" W (3.25mm x 1.65mm)
Thickness (Max) 0.049" (1.25mm)
Approval Agency AEC-Q200, cURus, TUV
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Other Names 507-1805-2,507-1805-1,507-1805-6
Standard Package 3,000
Win Source Part Number 1116970-0ZCJ0075AF2E
Ultra Librarian 3D Model Ultra Librarian 0ZCJ0075AF2E CAD Model

Description

The 0ZCJ0075AF2E is a PTC resettable fuse manufactured by Bel Fuse Inc.

  • Maximum Voltage Rating: 16V
  • Maximum Current: 100A
  • Package Size: 1206 (3216 Metric), Concave
  • Temperature Range: -40°C to 85°C
  • Alternative Parts: 0ZCJ0075AF2E
  • AEC-Q200 Rated: Yes
  • Categorization: Circuit Protection Product
