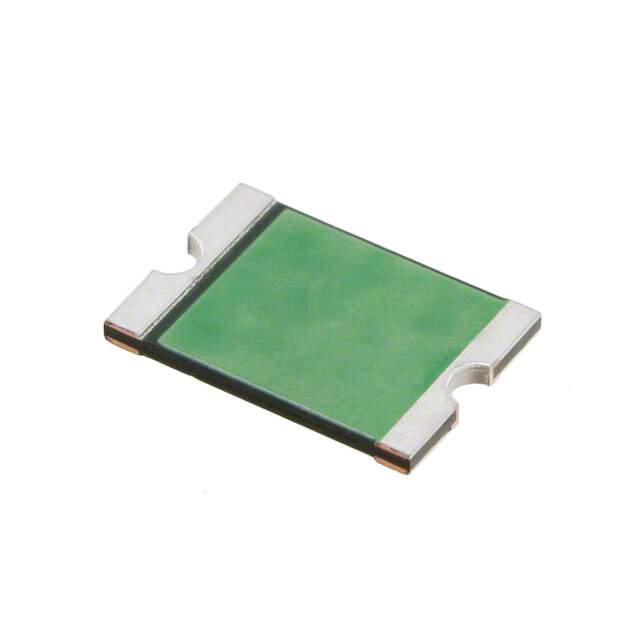

0ZCF0150FF2C

Part No 0ZCF0150FF2C
Manufacturer Bel Fuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 33V 1.5A 2920 / Surface Mount PTC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Bel Fuse Inc.
Packaging Reel
Type Polymeric
Voltage - Max 33V
Current - Max 100A
Current - Hold (Ih) (Maximum) 1.5A
Current - Trip (It) 3A
Time to Trip 2s
Resistance - Initial (Ri) (Min) 50 mOhms
Resistance - Post Trip (R1) (Maximum) 230 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 2920 (7351 Metric), Concave
Dimension 0.290" L x 0.202" W (7.36mm x 5.12mm)
Thickness (Maximum) 0.035" (0.90mm)
Approvals cURus, TUV
Manufacturer Pack Quantity 2,000
MSL Level 2A (4 Weeks)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802715-0ZCF0150FF2C
Ultra Librarian 3D Model Ultra Librarian 0ZCF0150FF2C CAD Model

Description

The 802715-0ZCF0150FF2C is a polymeric SMD fuse from Bel Fuse Inc.

  • Voltage - Max: 33V
  • Current - Max: 100A
  • Current - Trip: 3A
  • Time to Trip: 2s
  • Operating Temperature: -40°C to 85°C
  • Size / Dimension: 0.290" L x 0.202" W (7.36mm x 5.12mm)
  • Resistance - Initial (Ri) (Min): 50 mOhms
  • Resistance - Post Trip (R1) (Maximum): 230 mOhms
  • Manufacturer Pack Quantity: 2,000
  • Approvals: cURus, TUV
