Same model may have multiple batches, images only for reference.

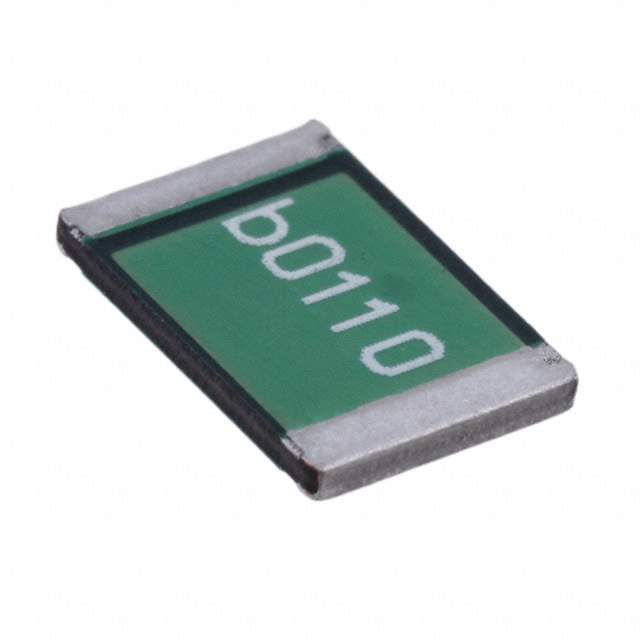

0ZCD0185FF2C Real Image
Same model may have multiple batches, images only for reference.

0ZCD0185FF2C

Part No 0ZCD0185FF2C
Manufacturer Bel Fuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 33V 1.85A 2920 / Surface Mount PTC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Bel Fuse Inc.
Packaging Reel
Part Status Obsolete (End Of Life)
Type Polymeric
Voltage - Max 33V
Current - Max 40A
Current - Hold (Ih) (Maximum) 1.85A
Current - Trip (It) 3.7A
Time to Trip 2.5s
Resistance - Initial (Ri) (Min) 40 mOhms
Resistance - Post Trip (R1) (Maximum) 150 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 2920 (7351 Metric)
Dimension 0.290" L x 0.202" W (7.36mm x 5.12mm)
Thickness (Maximum) 0.035" (0.90mm)
Approvals cURus, TUV
Manufacturer Pack Quantity 2,000
MSL Level 2A (4 Weeks)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806631-0ZCD0185FF2C
Ultra Librarian 3D Model Ultra Librarian 0ZCD0185FF2C CAD Model

Description

The Bel Fuse Inc. 806631-0ZCD0185FF2C is a polymeric type fuse that is mountable in SMD style.

  • Maximum Voltage: 33V
  • Maximum Current: 40A
  • Current Trip: 3.7A
  • Time to Trip: 2.5s
  • Initial Resistance: 40 mOhms
  • Post-Trip Resistance: 150 mOhms
  • Compliance: cURus and TUV
  • Popularity: Medium
  • Supply and Demand: Balanced
